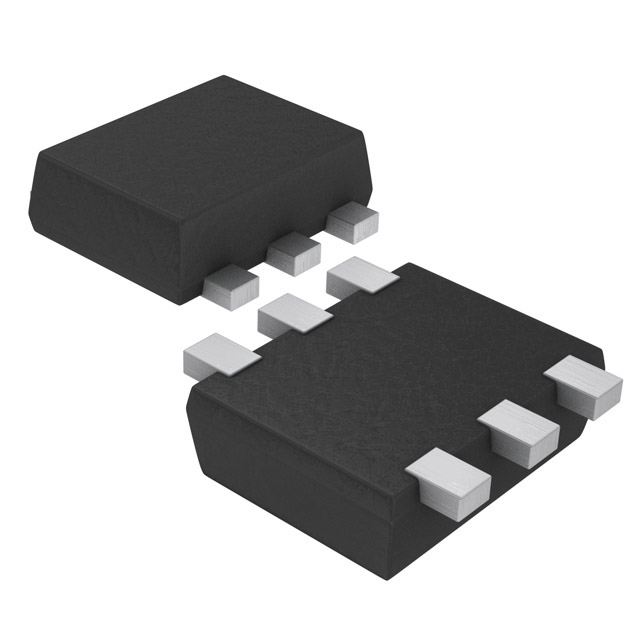

MCH6122-TL-E
TRANS PNP 30V 3A 6MCPHManufacturer: onsemi
Categories: Single Bipolar Transistors
Quality Control: Learn More
Bipolar (BJT) Transistor PNP 30 V 3 A 400MHz 1 W Surface Mount 6-MCPH
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 6-SMD, Flat Leads |
| Mounting Type | Surface Mount |
| Transistor Type | PNP |
| Operating Temperature | 150°C (TJ) |
| Vce Saturation (Max) @ Ib, Ic | 180mV @ 75mA, 1.5A |
| Current - Collector Cutoff (Max) | 100nA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 200 @ 500mA, 2V |
| Frequency - Transition | 400MHz |
| Supplier Device Package | 6-MCPH |
| Current - Collector (Ic) (Max) | 3 A |
| Voltage - Collector Emitter Breakdown (Max) | 30 V |
| Power - Max | 1 W |
