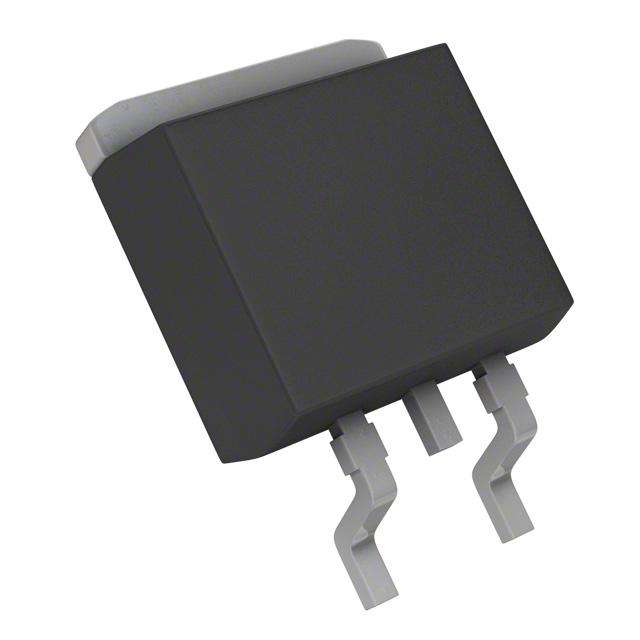

KSH42CTM
TRANS PNP 100V 6A DPAKManufacturer: onsemi
Categories: Single Bipolar Transistors
Quality Control: Learn More
onsemi KSH42CTM is a PNP bipolar junction transistor (BJT) designed for robust power switching applications. This component features a maximum collector current (Ic) of 6 A and a collector-emitter breakdown voltage (Vce) of 100 V. With a transition frequency of 3 MHz and a minimum DC current gain (hFE) of 15 at 3 A and 4 V, the KSH42CTM offers efficient amplification and switching characteristics.
The device is supplied in a TO-252-3, DPAK (2 Leads + Tab), SC-63 surface-mount package, ideal for automated assembly processes. Its maximum power dissipation is 20 W, and it operates within an ambient temperature range up to 150°C (TJ). The KSH42CTM is commonly utilized in power supplies, motor control circuits, and general-purpose amplification within the industrial and consumer electronics sectors. The Vce(sat) is rated at 1.5 V maximum at 600 mA base current and 6 A collector current. This component is packaged on a Tape & Reel (TR).
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | TO-252-3, DPAK (2 Leads + Tab), SC-63 |
| Mounting Type | Surface Mount |
| Transistor Type | PNP |
| Operating Temperature | 150°C (TJ) |
| Vce Saturation (Max) @ Ib, Ic | 1.5V @ 600mA, 6A |
| Current - Collector Cutoff (Max) | 10µA |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 15 @ 3A, 4V |
| Frequency - Transition | 3MHz |
| Supplier Device Package | DPAK |
| Current - Collector (Ic) (Max) | 6 A |
| Voltage - Collector Emitter Breakdown (Max) | 100 V |
| Power - Max | 20 W |
