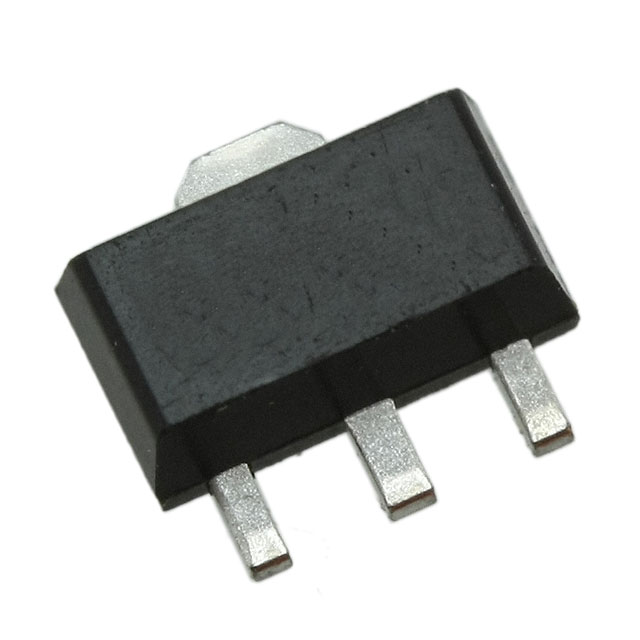

KSC2883OTF
TRANS NPN 30V 1.5A SOT89-3Manufacturer: onsemi
Categories: Single Bipolar Transistors
Quality Control: Learn More
onsemi KSC2883OTF is an NPN Bipolar Junction Transistor (BJT) designed for surface mount applications. This component features a collector-emitter breakdown voltage of 30V and a continuous collector current capability of 1.5A. With a power dissipation of 1W and a transition frequency of 120MHz, it is suitable for various amplification and switching tasks. The device exhibits a minimum DC current gain (hFE) of 100 at 500mA and 2V. The saturation voltage (Vce Sat) is specified at 2V with a base current of 30mA and collector current of 1.5A. Off-state characteristics include a maximum collector cutoff current (ICBO) of 100nA. The KSC2883OTF is supplied in a SOT-89-3 package, presented on tape and reel. This transistor is commonly utilized in industrial and consumer electronics applications.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | TO-243AA |
| Mounting Type | Surface Mount |
| Transistor Type | NPN |
| Operating Temperature | 150°C (TJ) |
| Vce Saturation (Max) @ Ib, Ic | 2V @ 30mA, 1.5A |
| Current - Collector Cutoff (Max) | 100nA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 100 @ 500mA, 2V |
| Frequency - Transition | 120MHz |
| Supplier Device Package | SOT-89-3 |
| Current - Collector (Ic) (Max) | 1.5 A |
| Voltage - Collector Emitter Breakdown (Max) | 30 V |
| Power - Max | 1 W |
