KSA1220AYS
TRANS PNP 160V 1.2A TO126Manufacturer: onsemi
Categories: Single Bipolar Transistors
Quality Control: Learn More

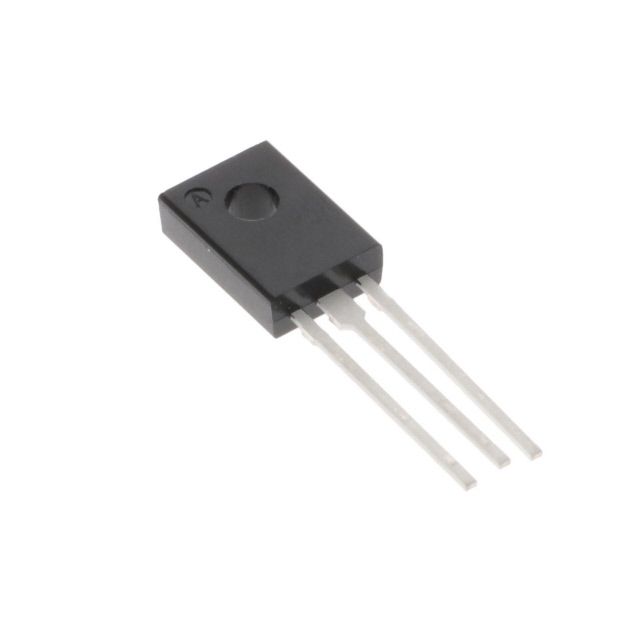

The onsemi KSA1220AYS is a PNP bipolar junction transistor (BJT) designed for through-hole mounting in a TO-126 package. This component offers a collector-emitter breakdown voltage of 160V and a continuous collector current capability of 1.2A. With a transition frequency of 175MHz and a maximum power dissipation of 1.2W, it is suitable for various amplification and switching applications. The device exhibits a minimum DC current gain (hFE) of 160 at 300mA and 5V, and a Vce saturation of 700mV at 200mA and 1A. The collector cutoff current is specified at 1µA (ICBO). This transistor finds application in consumer electronics and industrial control systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | TO-225AA, TO-126-3 |
| Mounting Type | Through Hole |
| Transistor Type | PNP |
| Operating Temperature | 150°C (TJ) |
| Vce Saturation (Max) @ Ib, Ic | 700mV @ 200mA, 1A |
| Current - Collector Cutoff (Max) | 1µA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 160 @ 300mA, 5V |
| Frequency - Transition | 175MHz |
| Supplier Device Package | TO-126 |
| Current - Collector (Ic) (Max) | 1.2 A |
| Voltage - Collector Emitter Breakdown (Max) | 160 V |
| Power - Max | 1.2 W |
