FJV1845PMTF
TRANS NPN 120V 0.05A SOT23-3Manufacturer: onsemi
Categories: Single Bipolar Transistors
Quality Control: Learn More

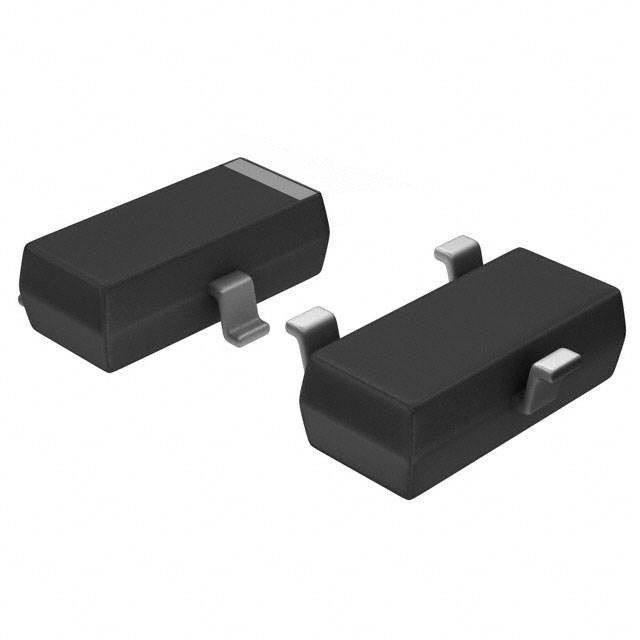

This onsemi NPN bipolar junction transistor, part number FJV1845PMTF, is packaged in a SOT-23-3 (TO-236-3, SC-59) surface mount configuration. It offers a maximum collector-emitter voltage (Vce) of 120V and a continuous collector current (Ic) of 50mA. The device features a transition frequency (Ft) of 110MHz and a maximum power dissipation of 300mW. At 1mA collector current and 6V Vce, a minimum DC current gain (hFE) of 200 is specified. The saturation voltage (Vce(sat)) is a maximum of 300mV at 1mA base current and 10mA collector current. The collector cutoff current (Icbo) is a maximum of 50nA. This component operates in a wide temperature range up to 150°C. It is supplied on tape and reel. Applications include general-purpose amplification and switching in various electronic systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Mounting Type | Surface Mount |
| Transistor Type | NPN |
| Operating Temperature | 150°C (TJ) |
| Vce Saturation (Max) @ Ib, Ic | 300mV @ 1mA, 10mA |
| Current - Collector Cutoff (Max) | 50nA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 200 @ 1mA, 6V |
| Frequency - Transition | 110MHz |
| Supplier Device Package | SOT-23-3 |
| Current - Collector (Ic) (Max) | 50 mA |
| Voltage - Collector Emitter Breakdown (Max) | 120 V |
| Power - Max | 300 mW |
