FJPF13007H2TU
TRANS NPN 400V 8A TO220F-3Manufacturer: onsemi
Categories: Single Bipolar Transistors
Quality Control: Learn More
onsemi FJPF13007H2TU is an NPN bipolar junction transistor designed for high-voltage, high-current applications. This through-hole component features a 400V collector-emitter breakdown voltage and a maximum collector current of 8A, dissipating up to 40W. Its transition frequency is 4MHz, with a minimum DC current gain (hFE) of 26 at 2A and 5V. The saturation voltage (Vce) is a maximum of 3V at 2A and 8A. Packaged in a TO-220F-3 (Full Pack) for efficient thermal management, this device is suitable for power supply circuits, lighting ballasts, and motor control applications.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |

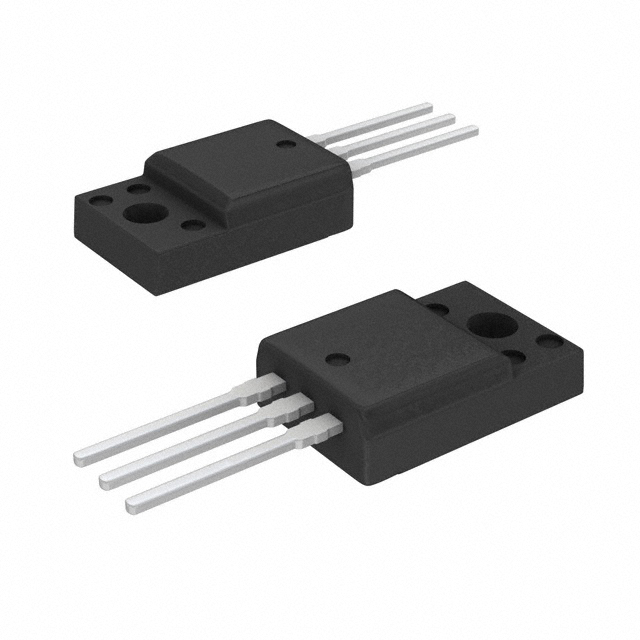

| Package / Case | TO-220-3 Full Pack |
| Mounting Type | Through Hole |
| Transistor Type | NPN |
| Operating Temperature | 150°C (TJ) |
| Vce Saturation (Max) @ Ib, Ic | 3V @ 2A, 8A |
| Current - Collector Cutoff (Max) | - |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 26 @ 2A, 5V |
| Frequency - Transition | 4MHz |
| Supplier Device Package | TO-220F-3 |
| Current - Collector (Ic) (Max) | 8 A |
| Voltage - Collector Emitter Breakdown (Max) | 400 V |
| Power - Max | 40 W |
