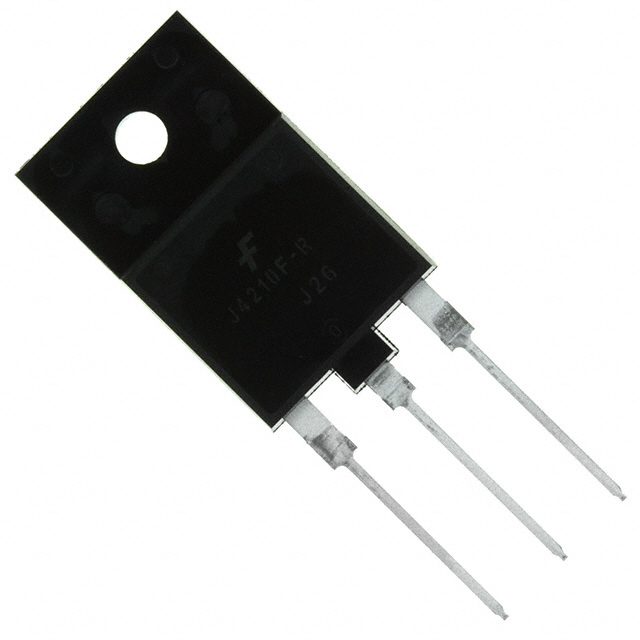

FJAF4210RTU
TRANS PNP 140V 10A TO3PFManufacturer: onsemi
Categories: Single Bipolar Transistors
Quality Control: Learn More
Bipolar (BJT) Transistor PNP 140 V 10 A 30MHz 80 W Through Hole TO-3PF
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-3P-3 Full Pack |
| Mounting Type | Through Hole |
| Transistor Type | PNP |
| Operating Temperature | 150°C (TJ) |
| Vce Saturation (Max) @ Ib, Ic | 500mV @ 500mA, 5A |
| Current - Collector Cutoff (Max) | 10µA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 50 @ 3A, 4V |
| Frequency - Transition | 30MHz |
| Supplier Device Package | TO-3PF |
| Current - Collector (Ic) (Max) | 10 A |
| Voltage - Collector Emitter Breakdown (Max) | 140 V |
| Power - Max | 80 W |
