BD436STU

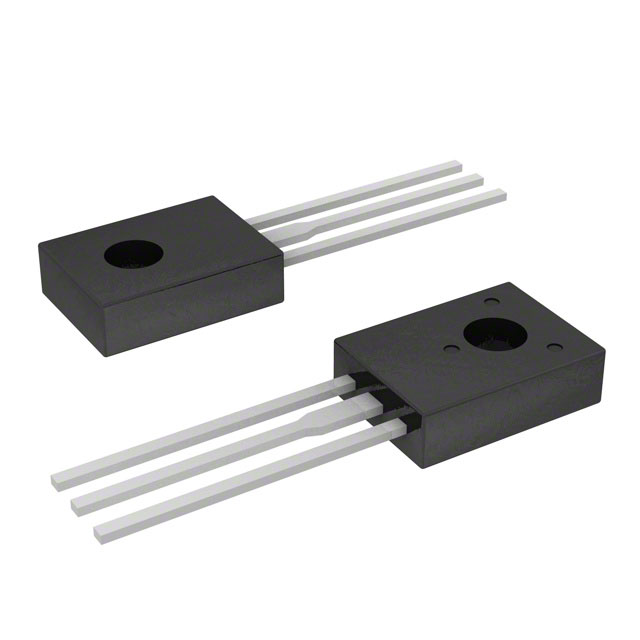

TRANS PNP 32V 4A TO126-3Manufacturer: onsemi
Categories: Single Bipolar Transistors
Quality Control: Learn More
onsemi BD436STU is a PNP bipolar junction transistor (BJT) designed for general-purpose amplification and switching applications. This component features a 32V collector-emitter breakdown voltage and a maximum collector current of 4A. With a power dissipation capability of 36W and a transition frequency of 3MHz, it is suitable for use in power supply circuits, voltage regulators, and audio amplification stages. The BD436STU is housed in a TO-126-3 (TO-225AA) package, facilitating through-hole mounting. Key electrical characteristics include a minimum DC current gain (hFE) of 40 at 10mA and 5V, and a maximum collector saturation voltage of 500mV at 200mA and 2A. The device operates reliably up to a junction temperature of 150°C. Industries served include consumer electronics and industrial control systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-225AA, TO-126-3 |
| Mounting Type | Through Hole |
| Transistor Type | PNP |
| Operating Temperature | 150°C (TJ) |
| Vce Saturation (Max) @ Ib, Ic | 500mV @ 200mA, 2A |
| Current - Collector Cutoff (Max) | 100µA |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 40 @ 10mA, 5V |
| Frequency - Transition | 3MHz |
| Supplier Device Package | TO-126-3 |
| Current - Collector (Ic) (Max) | 4 A |
| Voltage - Collector Emitter Breakdown (Max) | 32 V |
| Power - Max | 36 W |
