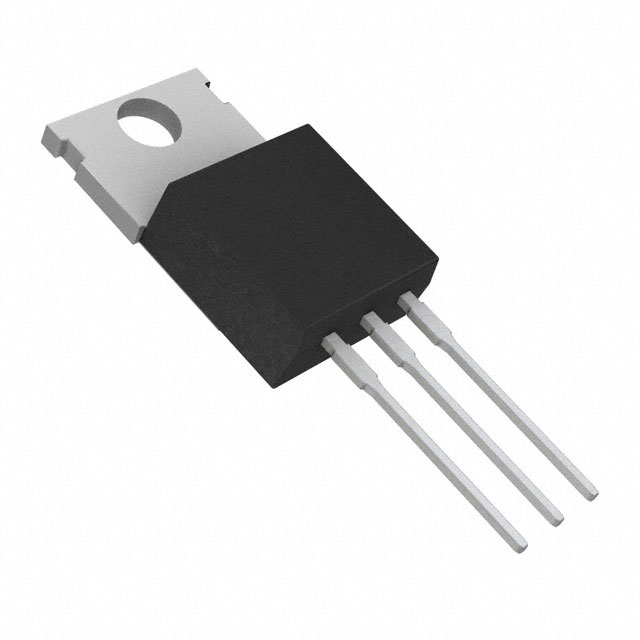

BD244BG
TRANS PNP 80V 6A TO220Manufacturer: onsemi
Categories: Single Bipolar Transistors
Quality Control: Learn More
The onsemi BD244BG is a PNP bipolar junction transistor (BJT) designed for robust performance in demanding applications. This device features a collector-emitter breakdown voltage (Vce) of 80 V and a continuous collector current (Ic) capability of up to 6 A, with a maximum power dissipation of 65 W. It exhibits a minimum DC current gain (hFE) of 15 at 3 A and 4 V, and a transition frequency of 3 MHz. The BD244BG has a collector cutoff current (Ic) of 700 µA and a Vce(sat) of 1.5 V at 1 A, 6 A. Packaged in a TO-220-3 through-hole configuration, this transistor is suitable for power switching and amplification circuits across various industrial sectors including automotive, consumer electronics, and industrial automation. The operating temperature range is -65°C to 150°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-220-3 |
| Mounting Type | Through Hole |
| Transistor Type | PNP |
| Operating Temperature | -65°C ~ 150°C (TJ) |
| Vce Saturation (Max) @ Ib, Ic | 1.5V @ 1A, 6A |
| Current - Collector Cutoff (Max) | 700µA |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 15 @ 3A, 4V |
| Frequency - Transition | 3MHz |
| Supplier Device Package | TO-220 |
| Current - Collector (Ic) (Max) | 6 A |
| Voltage - Collector Emitter Breakdown (Max) | 80 V |
| Power - Max | 65 W |
