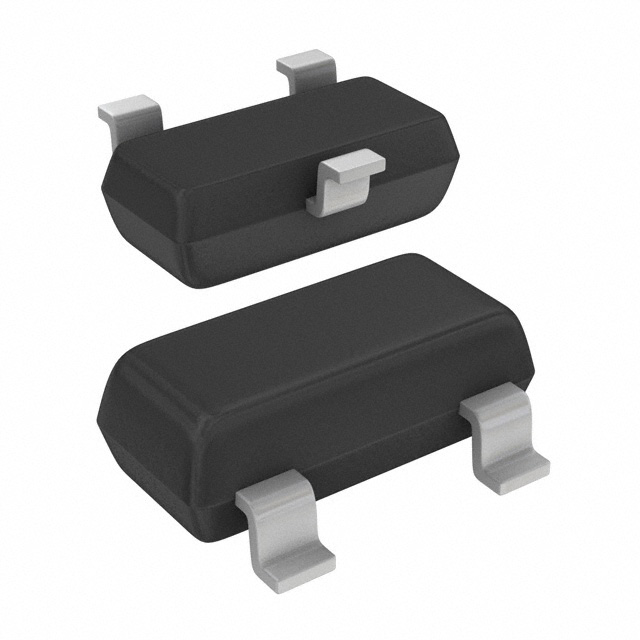

30A02CH-TL-E
TRANS PNP 30V 0.7A 3CPHManufacturer: onsemi
Categories: Single Bipolar Transistors
Quality Control: Learn More
Bipolar (BJT) Transistor PNP 30 V 700 mA 520MHz 700 mW Surface Mount 3-CPH
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 8 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Mounting Type | Surface Mount |
| Transistor Type | PNP |
| Operating Temperature | 150°C (TJ) |
| Vce Saturation (Max) @ Ib, Ic | 220mV @ 10mA, 200mA |
| Current - Collector Cutoff (Max) | 100nA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 200 @ 10mA, 2V |
| Frequency - Transition | 520MHz |
| Supplier Device Package | 3-CPH |
| Current - Collector (Ic) (Max) | 700 mA |
| Voltage - Collector Emitter Breakdown (Max) | 30 V |
| Power - Max | 700 mW |
Request a Quote
