2SD1835T
TRANS NPN 50V 2A 3NPManufacturer: onsemi
Categories: Single Bipolar Transistors
Quality Control: Learn More

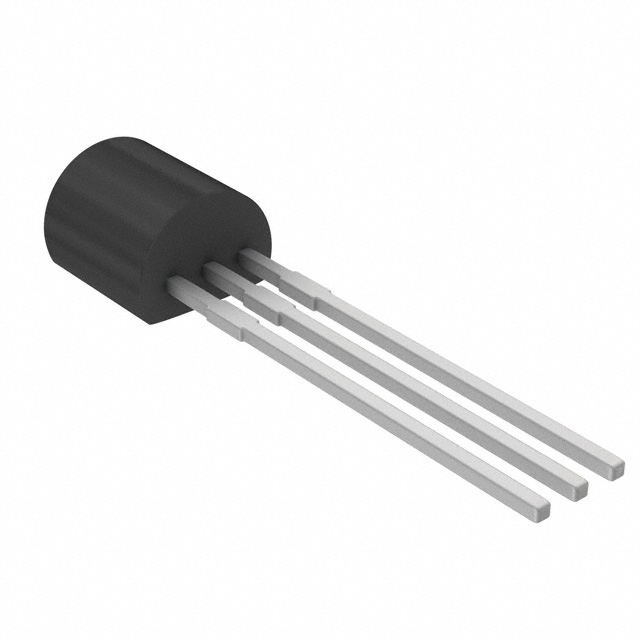

onsemi 2SD1835T is a NPN bipolar junction transistor (BJT) designed for general-purpose amplification and switching applications. This through-hole component offers a collector-emitter breakdown voltage of 50V and a continuous collector current capability of up to 2A. It features a transition frequency of 150MHz and a maximum power dissipation of 750mW. The DC current gain (hFE) is a minimum of 200 at 100mA and 2V. Saturation voltage (Vce) is specified at a maximum of 400mV at 50mA base current and 1A collector current. The 2SD1835T is packaged in a 3-NP (TO-226-3, TO-92-3) configuration. This device is commonly utilized in consumer electronics, industrial control systems, and power management circuits.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | TO-226-3, TO-92-3 (TO-226AA) |
| Mounting Type | Through Hole |
| Transistor Type | NPN |
| Operating Temperature | 150°C (TJ) |
| Vce Saturation (Max) @ Ib, Ic | 400mV @ 50mA, 1A |
| Current - Collector Cutoff (Max) | 100nA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 200 @ 100mA, 2V |
| Frequency - Transition | 150MHz |
| Supplier Device Package | 3-NP |
| Current - Collector (Ic) (Max) | 2 A |
| Voltage - Collector Emitter Breakdown (Max) | 50 V |
| Power - Max | 750 mW |
