2SD1012F-SPA-AC
TRANS NPN 15V 0.7A 3SPAManufacturer: onsemi
Categories: Single Bipolar Transistors
Quality Control: Learn More

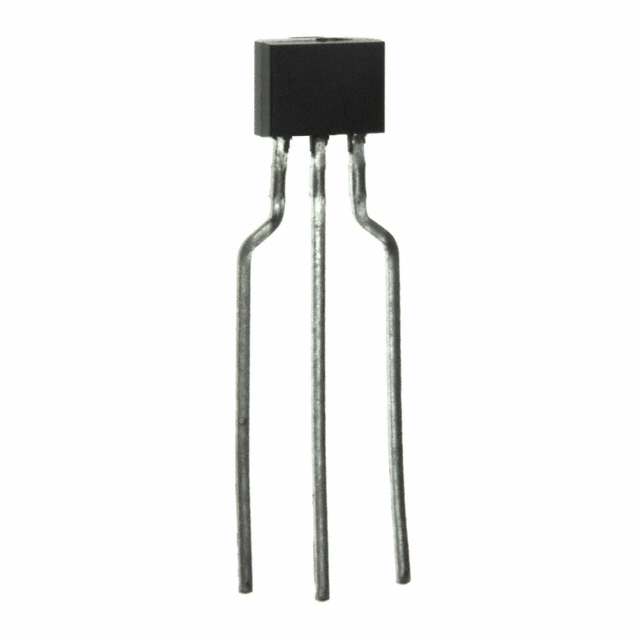

onsemi NPN Bipolar Junction Transistor, part number 2SD1012F-SPA-AC. This through-hole device features a collector-emitter breakdown voltage of 15V and a continuous collector current of 700mA. With a transition frequency of 250MHz and a maximum power dissipation of 250mW, it offers a minimum DC current gain (hFE) of 160 at 50mA and 2V. The saturation voltage (Vce Sat) is a maximum of 80mV at 10mA base current and 100mA collector current. The operating temperature range extends to 125°C. Packaged in a 3-SPA (3-SIP) configuration, this component is suitable for applications in consumer electronics, industrial automation, and power management systems.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 3-SIP |
| Mounting Type | Through Hole |
| Transistor Type | NPN |
| Operating Temperature | 125°C (TJ) |
| Vce Saturation (Max) @ Ib, Ic | 80mV @ 10mA, 100mA |
| Current - Collector Cutoff (Max) | 1µA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 160 @ 50mA, 2V |
| Frequency - Transition | 250MHz |
| Supplier Device Package | 3-SPA |
| Current - Collector (Ic) (Max) | 700 mA |
| Voltage - Collector Emitter Breakdown (Max) | 15 V |
| Power - Max | 250 mW |
