2SC6043
TRANS NPN 50V 2A 3MPManufacturer: onsemi
Categories: Single Bipolar Transistors
Quality Control: Learn More
onsemi NPN Bipolar Junction Transistor, part number 2SC6043. This general-purpose silicon NPN transistor features a 50V collector-emitter breakdown voltage and a continuous collector current rating of 2A. With a transition frequency of 420MHz and a maximum power dissipation of 1W, it is suitable for applications requiring moderate power handling and switching speeds. Key parameters include a minimum DC current gain (hFE) of 200 at 100mA and 2V, a Vce(sat) of 300mV at 50mA and 1A, and a collector cutoff current (ICBO) of 1µA. The device is supplied in a TO-226-3, TO-92-3 Long Body (3-MP) package for through-hole mounting. This component finds use in industrial and consumer electronics for general amplification and switching tasks.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |

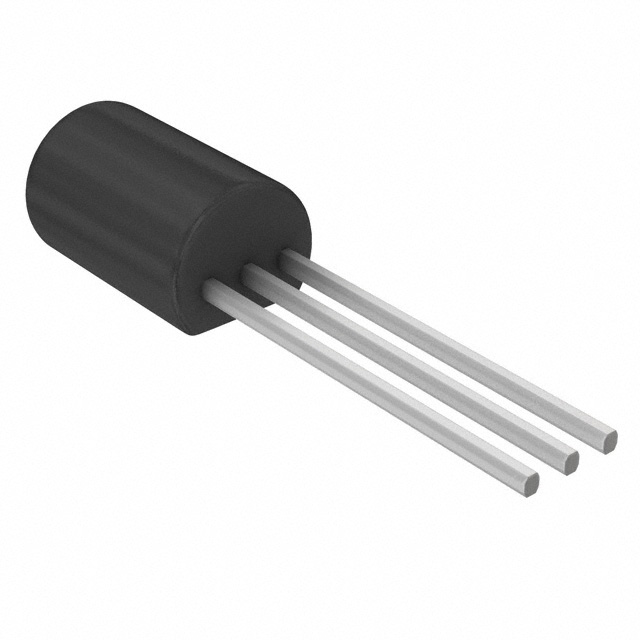

| Package / Case | TO-226-3, TO-92-3 Long Body |
| Mounting Type | Through Hole |
| Transistor Type | NPN |
| Operating Temperature | 150°C (TJ) |
| Vce Saturation (Max) @ Ib, Ic | 300mV @ 50mA, 1A |
| Current - Collector Cutoff (Max) | 1µA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 200 @ 100mA, 2V |
| Frequency - Transition | 420MHz |
| Supplier Device Package | 3-MP |
| Current - Collector (Ic) (Max) | 2 A |
| Voltage - Collector Emitter Breakdown (Max) | 50 V |
| Power - Max | 1 W |
