2SC5706-P-TL-E
TRANS NPN 100V 5A TPFAManufacturer: onsemi
Categories: Single Bipolar Transistors
Quality Control: Learn More
The onsemi 2SC5706-P-TL-E is an NPN bipolar junction transistor designed for surface mount applications. This component offers a collector-emitter breakdown voltage of 100V and a continuous collector current capability of 5A. Key electrical characteristics include a saturation voltage (Vce(sat)) of 240mV at 100mA collector current and 2A collector current, and a minimum DC current gain (hFE) of 200 at 500mA collector current and 2V collector-emitter voltage. The transistor exhibits a transition frequency (fT) of 400MHz and a maximum power dissipation of 800mW. It is supplied in a TP-FA package, specifically a TO-252-3, DPAK (2 Leads + Tab), SC-63, on a tape and reel. This device finds application in various power switching and amplification circuits within the consumer electronics and industrial automation sectors.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |

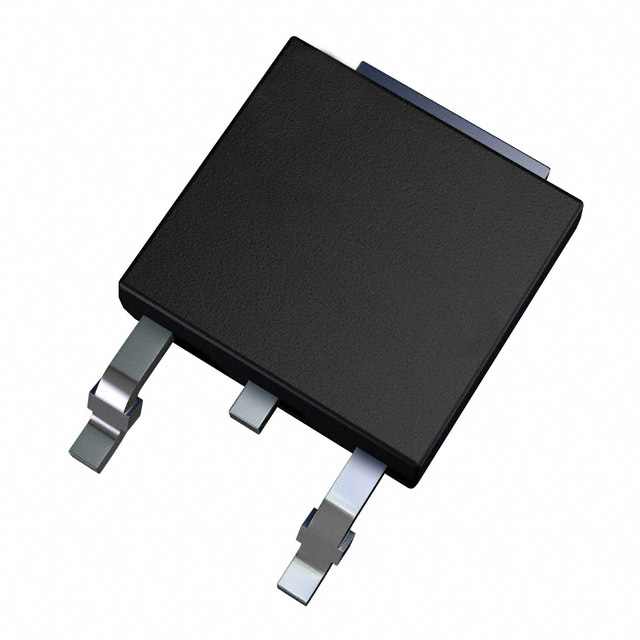

| Package / Case | TO-252-3, DPAK (2 Leads + Tab), SC-63 |
| Mounting Type | Surface Mount |
| Transistor Type | NPN |
| Operating Temperature | - |
| Vce Saturation (Max) @ Ib, Ic | 240mV @ 100mA, 2A |
| Current - Collector Cutoff (Max) | 1µA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 200 @ 500mA, 2V |
| Frequency - Transition | 400MHz |
| Supplier Device Package | TP-FA |
| Current - Collector (Ic) (Max) | 5 A |
| Voltage - Collector Emitter Breakdown (Max) | 100 V |
| Power - Max | 800 mW |
