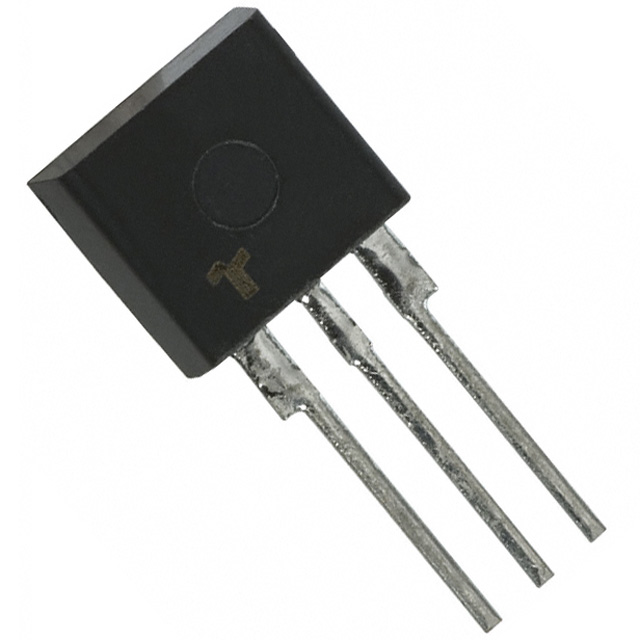

2SC4731T-AY
TRANS NPN 100V 4A FLPManufacturer: onsemi
Categories: Single Bipolar Transistors
Quality Control: Learn More
onsemi NPN Bipolar Junction Transistor (BJT), part number 2SC4731T-AY. This component features a 100V collector-emitter breakdown voltage and a maximum collector current of 4A. With a transition frequency of 180MHz and a maximum power dissipation of 1.5W, it is suitable for applications requiring efficient switching and amplification. The transistor exhibits a minimum DC current gain (hFE) of 200 at 500mA and 5V, with a Vce saturation of 400mV at 200mA and 2A. The device is supplied in a Through Hole TO-220-3 No Tab package, delivered on Tape & Reel. This transistor is commonly utilized in power supply circuits, audio amplifiers, and general-purpose switching applications within the consumer electronics and industrial automation sectors.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | TO-220-3 No Tab |
| Mounting Type | Through Hole |
| Transistor Type | NPN |
| Operating Temperature | - |
| Vce Saturation (Max) @ Ib, Ic | 400mV @ 200mA, 2A |
| Current - Collector Cutoff (Max) | 1µA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 200 @ 500mA, 5V |
| Frequency - Transition | 180MHz |
| Supplier Device Package | FLP |
| Current - Collector (Ic) (Max) | 4 A |
| Voltage - Collector Emitter Breakdown (Max) | 100 V |
| Power - Max | 1.5 W |
