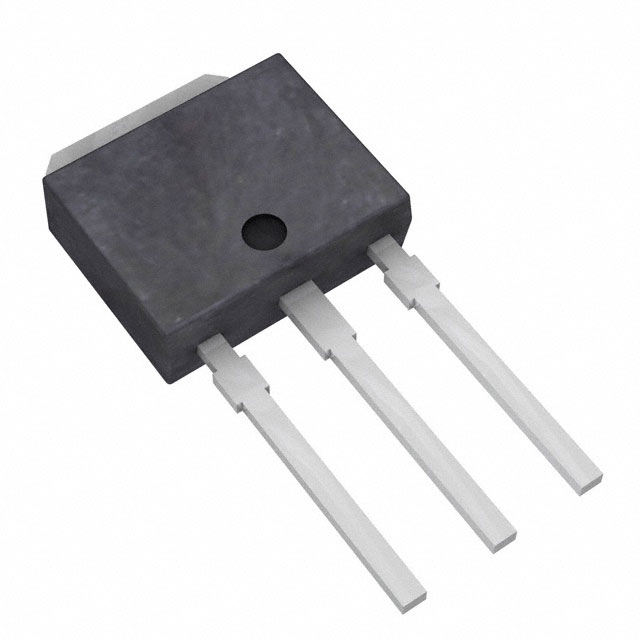

2SC4134T-E
TRANS NPN 100V 1A TPManufacturer: onsemi
Categories: Single Bipolar Transistors
Quality Control: Learn More
Bipolar (BJT) Transistor NPN 100 V 1 A 120MHz 800 mW Through Hole TP
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | TO-251-3 Short Leads, IPAK, TO-251AA |
| Mounting Type | Through Hole |
| Transistor Type | NPN |
| Operating Temperature | 150°C (TJ) |
| Vce Saturation (Max) @ Ib, Ic | 400mV @ 40mA, 400mA |
| Current - Collector Cutoff (Max) | 100nA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 200 @ 100mA, 5V |
| Frequency - Transition | 120MHz |
| Supplier Device Package | TP |
| Current - Collector (Ic) (Max) | 1 A |
| Voltage - Collector Emitter Breakdown (Max) | 100 V |
| Power - Max | 800 mW |
