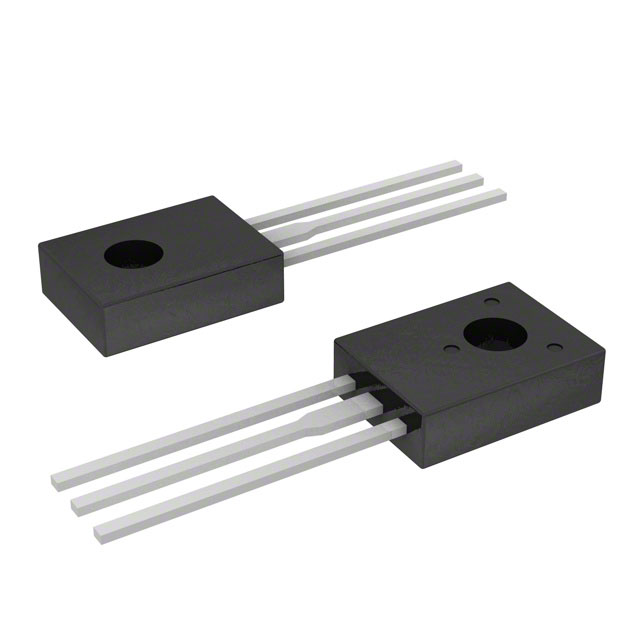

2SC3503FSTU
TRANS NPN 300V 0.1A TO126-3Manufacturer: onsemi
Categories: Single Bipolar Transistors
Quality Control: Learn More
onsemi 2SC3503FSTU is an NPN bipolar junction transistor (BJT) designed for power switching and linear amplification applications. This component features a 300V collector-emitter breakdown voltage (Vce(max)) and a continuous collector current (Ic) capability of 100mA. The transistor exhibits a minimum DC current gain (hFE) of 160 at 10mA collector current and 10V collector-emitter voltage, with a transition frequency (fT) of 150MHz. Power dissipation is rated at 7W. The TO-126-3 package with through-hole mounting is suitable for various industrial and consumer electronics, including power supplies and audio amplifiers. Operating temperature range is -55°C to 150°C.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-225AA, TO-126-3 |
| Mounting Type | Through Hole |
| Transistor Type | NPN |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Vce Saturation (Max) @ Ib, Ic | 600mV @ 2mA, 20mA |
| Current - Collector Cutoff (Max) | 100nA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 160 @ 10mA, 10V |
| Frequency - Transition | 150MHz |
| Supplier Device Package | TO-126-3 |
| Current - Collector (Ic) (Max) | 100 mA |
| Voltage - Collector Emitter Breakdown (Max) | 300 V |
| Power - Max | 7 W |
