2SB927S-AE
TRANSISTORManufacturer: onsemi
Categories: Single Bipolar Transistors
Quality Control: Learn More

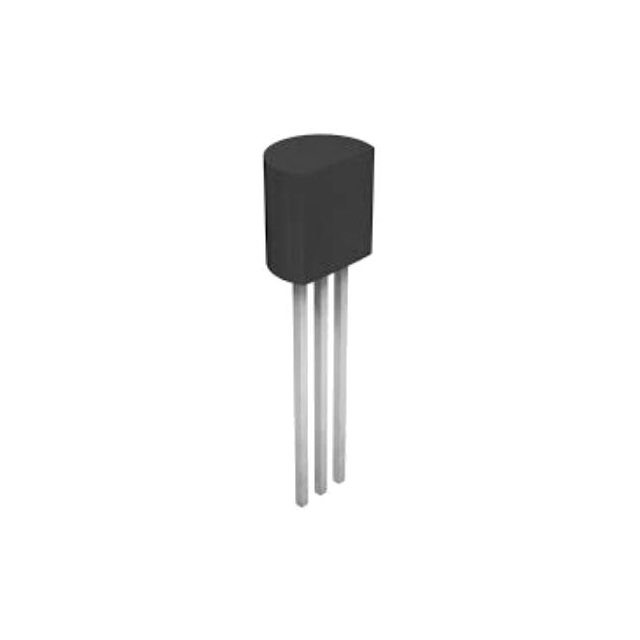

Bipolar (BJT) Transistor PNP 25 V 2.5 A 150MHz 1 W Through Hole 3-MP
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | TO-226-3, TO-92-3 Long Body |
| Mounting Type | Through Hole |
| Transistor Type | PNP |
| Operating Temperature | 150°C (TJ) |
| Vce Saturation (Max) @ Ib, Ic | 600mV @ 75mA, 1.5A |
| Current - Collector Cutoff (Max) | 100nA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 140 @ 100mA, 2V |
| Frequency - Transition | 150MHz |
| Supplier Device Package | 3-MP |
| Grade | - |
| Current - Collector (Ic) (Max) | 2.5 A |
| Voltage - Collector Emitter Breakdown (Max) | 25 V |
| Power - Max | 1 W |
| Qualification | - |
