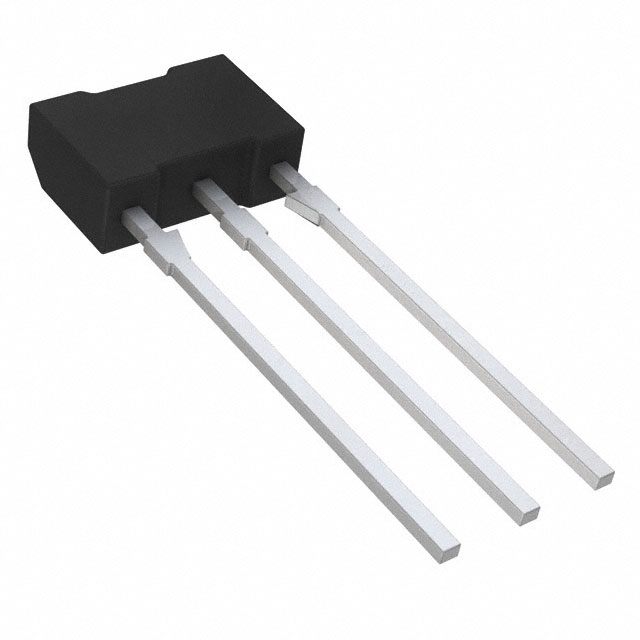

2SA1770S-AN
TRANS PNP 160V 1.5A 3NMPManufacturer: onsemi
Categories: Single Bipolar Transistors
Quality Control: Learn More
onsemi’s 2SA1770S-AN is a PNP bipolar junction transistor designed for power switching and amplification applications. This component features a maximum collector current of 1.5 A and a collector-emitter breakdown voltage of 160 V. With a transition frequency of 120 MHz and a maximum power dissipation of 1 W, it is suitable for use in industrial control systems, automotive electronics, and general-purpose power management circuits. The device offers a minimum DC current gain (hFE) of 100 at 100 mA and 5 V, and a saturation voltage (Vce(sat)) of 500 mV at 50 mA and 500 mA. Supplied in a 3-NMP (SC-71) package, it is available on tape and reel for automated assembly. The operating junction temperature range is up to 150°C.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | SC-71 |
| Mounting Type | Through Hole |
| Transistor Type | PNP |
| Operating Temperature | 150°C (TJ) |
| Vce Saturation (Max) @ Ib, Ic | 500mV @ 50mA, 500mA |
| Current - Collector Cutoff (Max) | 1µA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 100 @ 100mA, 5V |
| Frequency - Transition | 120MHz |
| Supplier Device Package | 3-NMP |
| Current - Collector (Ic) (Max) | 1.5 A |
| Voltage - Collector Emitter Breakdown (Max) | 160 V |
| Power - Max | 1 W |
