2N5679
TRANS PNP 100V 1A TO39Manufacturer: onsemi
Categories: Single Bipolar Transistors
Quality Control: Learn More

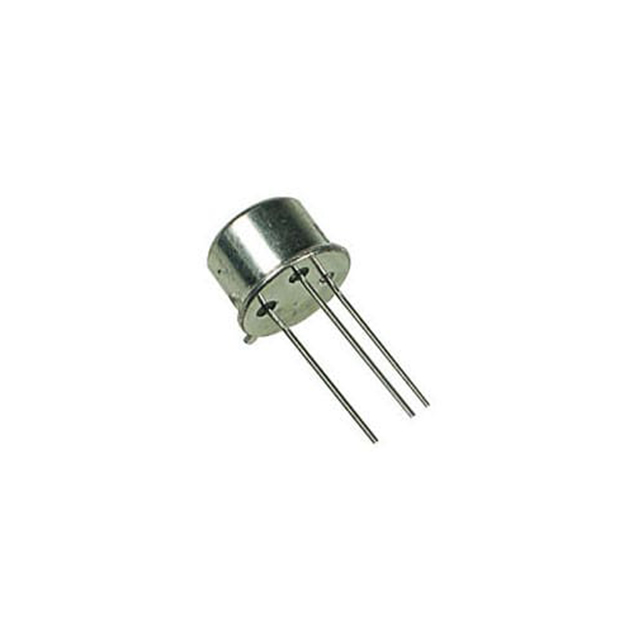

onsemi's 2N5679 is a PNP bipolar junction transistor (BJT) designed for general-purpose amplification and switching applications. This through-hole component, housed in a TO-39 metal can package (TO-205AD), offers a continuous collector current of 1 A and a collector-emitter breakdown voltage of 100 V. It features a maximum power dissipation of 1 W. Key electrical characteristics include a minimum DC current gain (hFE) of 40 at 250 mA and 2 V, and a saturation voltage (Vce(sat)) of 1 V at 50 mA and 500 mA. The collector cutoff current (Icbo) is specified at a maximum of 10 µA. This device is commonly utilized in industrial control systems and power supply circuits.
Additional Information
Series: -RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | TO-205AD, TO-39-3 Metal Can |
| Mounting Type | Through Hole |
| Transistor Type | PNP |
| Operating Temperature | - |
| Vce Saturation (Max) @ Ib, Ic | 1V @ 50mA, 500mA |
| Current - Collector Cutoff (Max) | 10µA |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 40 @ 250mA, 2V |
| Frequency - Transition | - |
| Supplier Device Package | TO-39 |
| Current - Collector (Ic) (Max) | 1 A |
| Voltage - Collector Emitter Breakdown (Max) | 100 V |
| Power - Max | 1 W |
