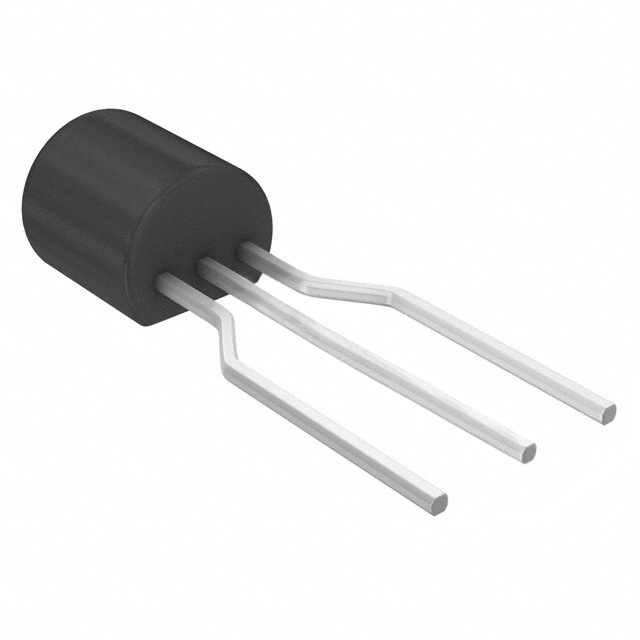

2N5550TA
TRANS NPN 140V 0.6A TO92-3Manufacturer: onsemi
Categories: Single Bipolar Transistors
Quality Control: Learn More
Bipolar (BJT) Transistor NPN 140 V 600 mA 300MHz 625 mW Through Hole TO-92-3
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 8 week(s)Product Status: ActivePackaging: Cut Tape (CT)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Cut Tape (CT) |
| Package / Case | TO-226-3, TO-92-3 (TO-226AA) Formed Leads |
| Mounting Type | Through Hole |
| Transistor Type | NPN |
| Operating Temperature | 150°C (TJ) |
| Vce Saturation (Max) @ Ib, Ic | 250mV @ 5mA, 50mA |
| Current - Collector Cutoff (Max) | 100nA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 60 @ 10mA, 5V |
| Frequency - Transition | 300MHz |
| Supplier Device Package | TO-92-3 |
| Current - Collector (Ic) (Max) | 600 mA |
| Voltage - Collector Emitter Breakdown (Max) | 140 V |
| Power - Max | 625 mW |
