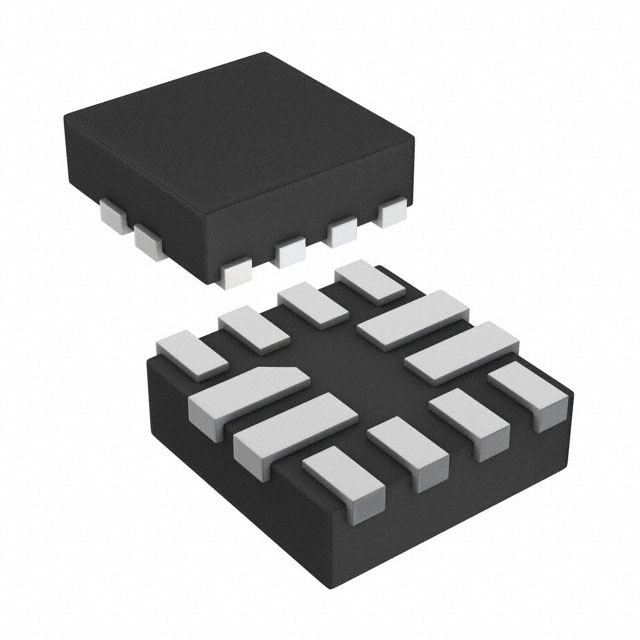

NB7VPQ701MMUTBG
IC REDRIVER USB 3.1 UQFN12Manufacturer: onsemi
Categories: Signal Buffers, Repeaters, Splitters
Quality Control: Learn More
The onsemi NB7VPQ701MMUTBG is a single-channel USB 3.1 ReDriver with a maximum data rate of 10Gbps. This buffer component is designed for signal integrity enhancement in high-speed serial data transmission. It features input equalization and output de-emphasis for robust performance. The device operates from a supply voltage of 1.71V to 1.89V and consumes 65mA of supply current. With an input capacitance of 1.25 pF and a delay time of 150ps, it is suitable for demanding applications. The NB7VPQ701MMUTBG is housed in a 12-UFQFN package and is provided on tape and reel. This component is commonly utilized in USB applications, including connectivity solutions for computing and consumer electronics.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 12-UFQFN |
| Delay Time | 150ps |
| Number of Channels | 1 |
| Mounting Type | Surface Mount |
| Output | Differential |
| Type | Buffer, ReDriver |
| Input | Differential |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 1.71V ~ 1.89V |
| Applications | USB |
| Current - Supply | 65mA |
| Data Rate (Max) | 10Gbps |
| Supplier Device Package | 12-UQFN (1.6x1.6) |
| Signal Conditioning | Input Equalization, Output De-Emphasis |
| Capacitance - Input | 1.25 pF |
