AX-SF10-MINI21-868-B1
RF TXRX MODULE CASTELLATION SMDManufacturer: onsemi
Categories: RF Transceiver Modules and Modems
Quality Control: Learn More
onsemi AX-SF10-MINI21-868-B1 is a Sigfox transceiver module operating at 868MHz. This surface mount component features castellations for robust interconnectivity and requires an external antenna. The module supports a data rate of 600bps utilizing GFSK modulation. Transmit current ranges from 21mA to 51mA, while receive current draw is 13mA. It offers a transmit power of 14dBm and a sensitivity of -126dBm. Serial communication is facilitated via SPI and UART interfaces. The operating voltage range is 1.8V to 3.3V, and it is rated for operation between -40°C and 85°C. This module is commonly found in IoT and wireless sensor network applications.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BagDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bag |
| Package / Case | Module |
| Sensitivity | -126dBm |
| Mounting Type | Surface Mount |
| Frequency | 868MHz |
| Memory Size | - |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 1.8V ~ 3.3V |
| Power - Output | 14dBm |
| Data Rate | 600bps |
| Protocol | Sigfox |
| Current - Receiving | 13mA |
| Current - Transmitting | 21mA ~ 51mA |
| Antenna Type | Antenna Not Included, Castellation |
| Utilized IC / Part | - |
| Modulation | GFSK |
| RF Family/Standard | - |
| Serial Interfaces | SPI, UART |
| Programmable | Not Verified |
Request a Quote
Clients Also Buy

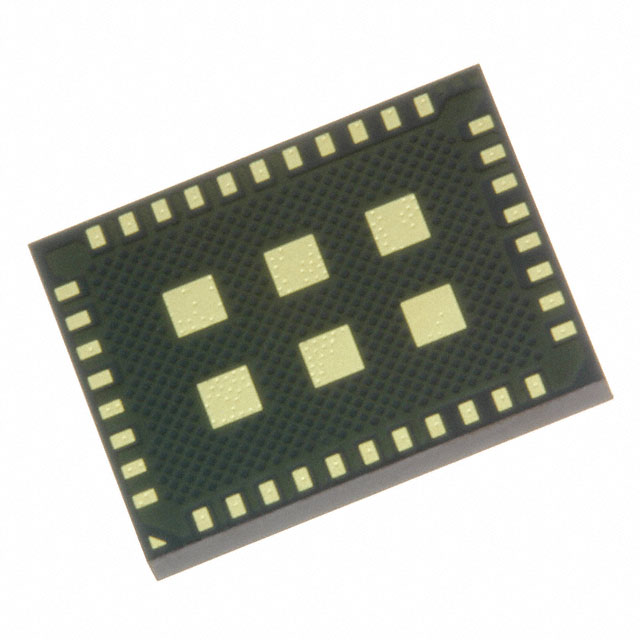

AX-SIP-SFEU-1-01-TX30
