AX5051-1-TA05

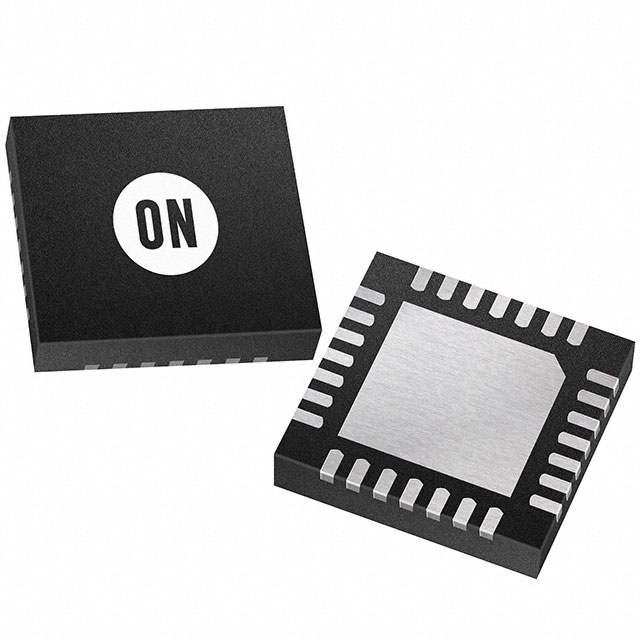

IC RF TXRX ISM<1GHZ 28QFNManufacturer: onsemi
Categories: RF Transceiver ICs
Quality Control: Learn More
onsemi AX5051-1-TA05 is a highly integrated RF transceiver IC designed for general ISM band applications below 1GHz. This device supports transmission and reception across multiple frequency bands, including 400MHz to 470MHz and 800MHz to 940MHz. It offers flexible modulation schemes such as ASK, FSK, MSK, O-QPSK, and PSK, with a maximum data rate of 600kbps. The AX5051-1-TA05 boasts a strong receive sensitivity of -116dBm and a transmit output power of 16dBm. Power consumption is efficient, with typical receiving current draw at 17mA-19mA and transmitting current at 45mA. Communication with the host microcontroller is handled via an SPI serial interface. The component is housed in a 28-VFQFN exposed pad package suitable for surface mounting. This device finds application in various industrial automation, smart metering, and wireless sensor network systems. The product is supplied in tape and reel packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 28-VFQFN Exposed Pad |
| Sensitivity | -116dBm |
| Mounting Type | Surface Mount |
| Frequency | 400MHz ~ 470MHz, 800MHz ~ 940MHz |
| Memory Size | - |
| Type | TxRx Only |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 2.2V ~ 3.6V |
| Power - Output | 16dBm |
| Protocol | - |
| Current - Receiving | 17mA ~ 19mA |
| Data Rate (Max) | 600kbps |
| Current - Transmitting | 45mA |
| Supplier Device Package | 28-QFN (5x5) |
| Modulation | ASK, FSK, MSK, O-QPSK, PSK |
| RF Family/Standard | General ISM < 1GHz |
| Serial Interfaces | SPI |
| Programmable | Not Verified |
