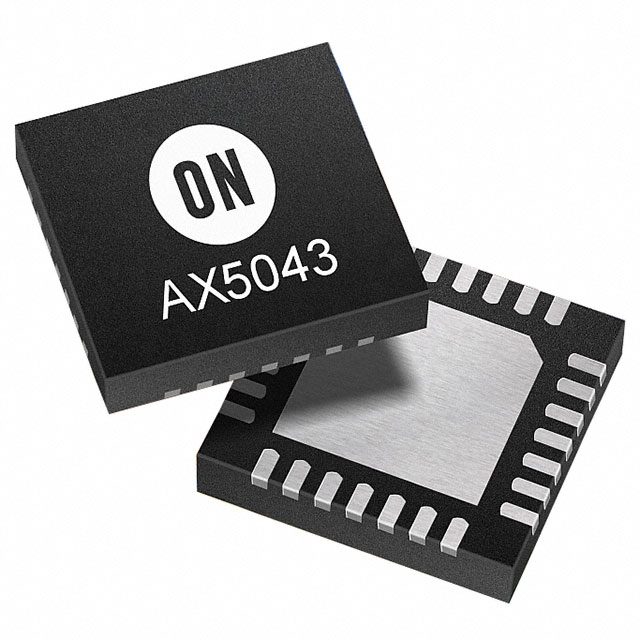

AX5043-1-TA05
IC RF TXRX ISM<1GHZ 28QFNManufacturer: onsemi
Categories: RF Transceiver ICs
Quality Control: Learn More
The onsemi AX5043-1-TA05 is a highly integrated RF transceiver IC designed for general ISM band applications below 1GHz. Operating within a frequency range of 27MHz to 1.05GHz, this device supports a variety of modulation schemes including 4FSK, ASK, AFSK, FSK, GFSK, GMSK, MSK, and PSK. It offers a maximum output power of 16dBm and a sensitivity of -137dBm, with data rates up to 125kbps. Power consumption is efficient, drawing 6.5mA to 11mA during reception and 7.5mA to 48mA during transmission.
The AX5043-1-TA05 features serial interfaces such as SPI and UART for flexible control. It is housed in a 28-VFQFN exposed pad package, suitable for surface mounting. The operating temperature range is -40°C to 85°C, and it requires a supply voltage between 1.8V and 3.6V. This component is commonly utilized in industrial automation, smart metering, and wireless sensor network applications. The device is supplied on a tape and reel for automated assembly.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 28-VFQFN Exposed Pad |
| Sensitivity | -137dBm |
| Mounting Type | Surface Mount |
| Frequency | 27MHz ~ 1.05GHz |
| Memory Size | - |
| Type | TxRx Only |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 1.8V ~ 3.6V |
| Power - Output | 16dBm (Max) |
| Protocol | - |
| Current - Receiving | 6.5mA ~ 11mA |
| Data Rate (Max) | 125kbps |
| Current - Transmitting | 7.5mA ~ 48mA |
| Supplier Device Package | 28-QFN (5x5) |
| Modulation | 4FSK, ASK, AFSK, FSK, GFSK, GMSK, MSK, PSK |
| RF Family/Standard | General ISM < 1GHz |
| Serial Interfaces | SPI, UART |
| Programmable | Not Verified |
