AX5042-1-TW30

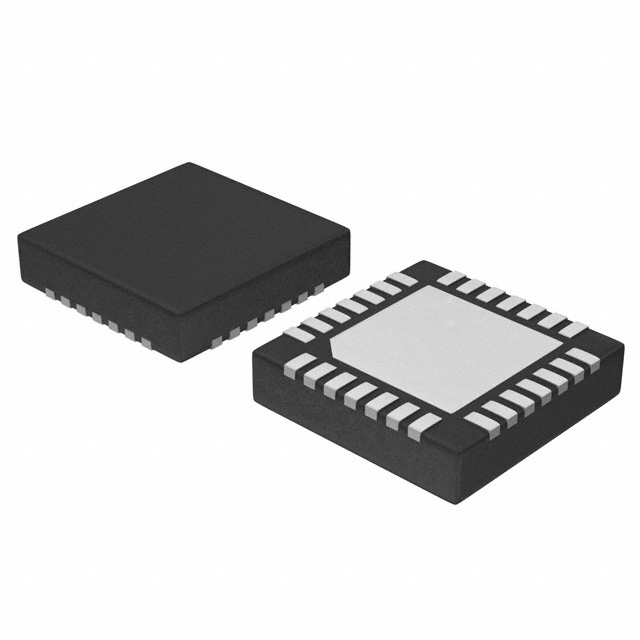

IC RF TXRX ISM<1GHZ 28QFNManufacturer: onsemi
Categories: RF Transceiver ICs
Quality Control: Learn More
The onsemi AX5042-1-TW30 is a highly integrated RF transceiver IC operating in the General ISM < 1GHz band. This device supports a wide frequency range, covering 400MHz to 470MHz and 800MHz to 940MHz. It offers versatile modulation schemes including ASK, FSK, GFSK, GMSK, MSK, O-QPSK, and PSK, with a maximum data rate of 600kbps. The AX5042-1-TW30 features a receive sensitivity of -123dBm and a transmit output power of 13.5dBm. Power consumption is efficient, with typical receiving current draw between 17mA and 23mA, and transmitting current between 13mA and 37mA. Connectivity is facilitated via SPI and UART serial interfaces. This component is housed in a 28-VFQFN exposed pad package, suitable for surface mounting. Operating temperature range is -40°C to 85°C. The onsemi AX5042-1-TW30 is commonly utilized in applications spanning wireless sensor networks, smart metering, and industrial automation.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 28-VFQFN Exposed Pad |
| Sensitivity | -123dBm |
| Mounting Type | Surface Mount |
| Frequency | 400MHz ~ 470MHz, 800MHz ~ 940MHz |
| Memory Size | - |
| Type | TxRx Only |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 2.3V ~ 2.8V |
| Power - Output | 13.5dBm |
| Protocol | - |
| Current - Receiving | 17mA ~ 23mA |
| Data Rate (Max) | 600kbps |
| Current - Transmitting | 13mA ~ 37mA |
| Supplier Device Package | 28-QFN (5x5) |
| Modulation | ASK, FSK, GFSK, GMSK, MSK, O-QPSK, PSK |
| RF Family/Standard | General ISM < 1GHz |
| Serial Interfaces | SPI, UART |
| Programmable | Not Verified |
