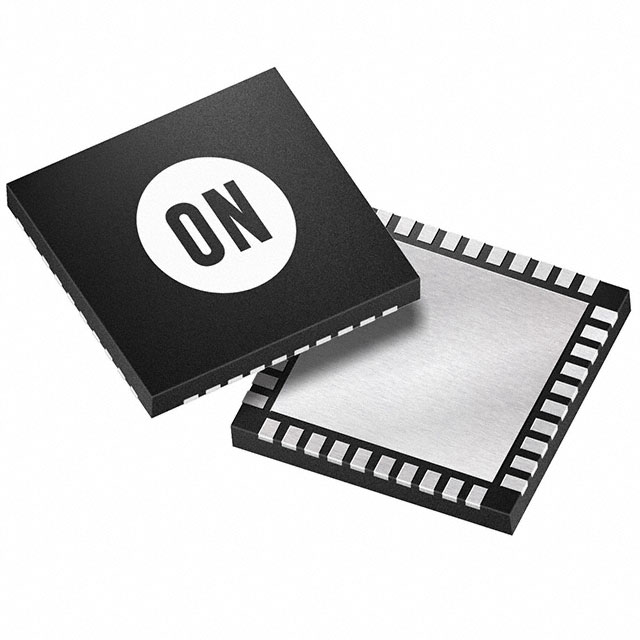

AX-SFUS-API-1-01-TX30
IC RF TXRX+MCU ISM<1GHZ 40QFNManufacturer: onsemi
Categories: RF Transceiver ICs
Quality Control: Learn More
The onsemi AX-SFUS-API-1-01-TX30 is a highly integrated RF transceiver IC featuring an embedded microcontroller for general ISM < 1GHz applications. This device supports the SIGFOX™ protocol and operates in the 902MHz frequency band, offering a maximum data rate of 600bps. Key specifications include a transmit power of 24dBm and a receiver sensitivity of -128dBm. Modulation capabilities encompass FSK and GFSK. The unit provides 8 GPIO pins and serial interfaces including SPI and UART. It is housed in a 40-VFQFN Exposed Pad package suitable for surface mounting. The operating temperature range is -40°C to 85°C, with a supply voltage requirement of 2.7V to 3.6V. Typical applications include smart metering, asset tracking, and industrial IoT deployments.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 40-VFQFN Exposed Pad |
| Sensitivity | -128dBm |
| Mounting Type | Surface Mount |
| Frequency | 902MHz |
| Memory Size | - |
| Type | TxRx + MCU |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 2.7V ~ 3.6V |
| Power - Output | 24dBm |
| Protocol | SIGFOX™ |
| Current - Receiving | 34mA |
| Data Rate (Max) | 600bps |
| Current - Transmitting | 230mA |
| Supplier Device Package | 40-QFN (7x5) |
| GPIO | 8 |
| Modulation | FSK, GFSK |
| RF Family/Standard | General ISM < 1GHz |
| Serial Interfaces | SPI, UART |
| Programmable | Not Verified |
