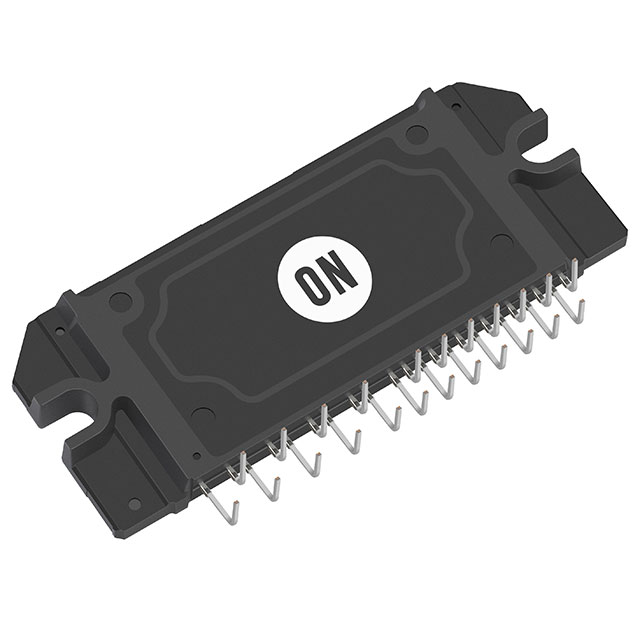

STK554U392C-E
3 PHASE INVERTER IPMManufacturer: onsemi
Categories: Power Driver Modules
Quality Control: Learn More
onsemi STK554U392C-E is a 3-phase inverter intelligent power module (IPM) designed for high-efficiency power conversion applications. This IGBT-based module offers robust performance with a 600V breakdown voltage and a continuous current capability of 15A. Its integrated driver circuitry simplifies system design and reduces component count. The STK554U392C-E is housed in a 29-SSIP module package with 21 formed leads, suitable for through-hole mounting. This power driver module is commonly employed in motor control systems, industrial automation, and renewable energy inverters where reliable and compact power stage solutions are critical.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 29-SSIP Module, 21 Leads, Formed Leads |
| Mounting Type | Through Hole |
| Type | IGBT |
| Configuration | 3 Phase Inverter |
| Voltage - Isolation | - |
| Current | 15 A |
| Voltage | 600 V |
