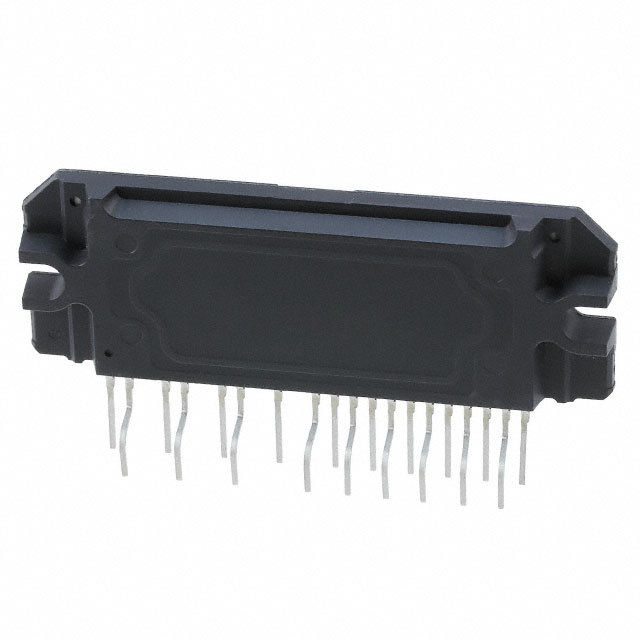

STK544UC63K-E
INTELLIGENT POWER MODULE 600V 10Manufacturer: onsemi
Categories: Power Driver Modules
Quality Control: Learn More
onsemi STK544UC63K-E is a 3-phase inverter intelligent power module designed for robust performance. This high-voltage component operates at 600V and delivers up to 10A, featuring IGBT technology for efficient power switching. The module is housed in a 23-PowerSIP package with 19 leads, suitable for through-hole mounting. It provides 2000Vrms isolation, ensuring reliable operation in demanding environments. Applications for this power driver module include industrial motor drives, power supplies, and electric vehicle powertrains, where high efficiency and reliability are critical.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 34 week(s)Product Status: Not For New DesignsPackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 23-PowerSIP Module, 19 Leads, Formed Leads |
| Mounting Type | Through Hole |
| Type | IGBT |
| Configuration | 3 Phase Inverter |
| Voltage - Isolation | 2000Vrms |
| Current | 10 A |
| Voltage | 600 V |
