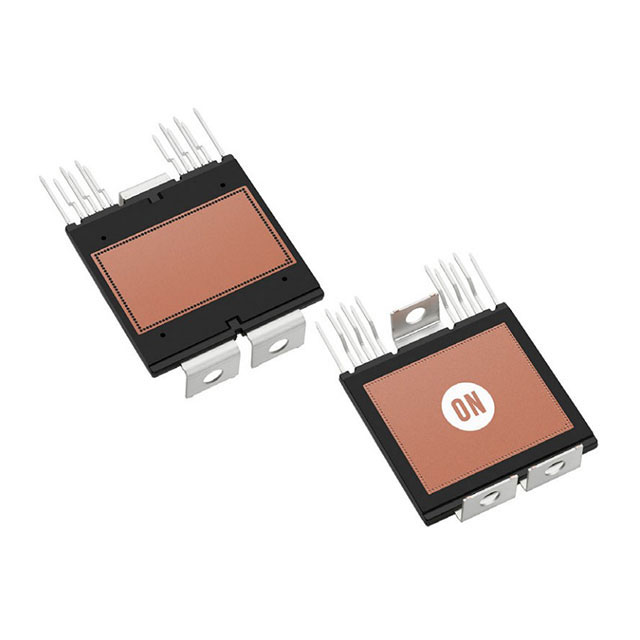

NVG800A75L4DSC-Z008
DUAL SIDE COOLING POWER MODULEManufacturer: onsemi
Categories: Power Driver Modules
Quality Control: Learn More
The onsemi NVG800A75L4DSC-Z008 is a high-performance IGBT Half Bridge Power Driver Module designed for demanding applications requiring efficient power control. This module features a robust 750 V blocking voltage capability and a continuous current rating of 800 A, making it suitable for power conversion systems in industrial motor drives, electric vehicle powertrains, and renewable energy inverters. The dual-sided cooling design, facilitated by its module package and chassis mount, ensures optimal thermal management for sustained operation under high power densities. With an isolation voltage of 4200Vrms, it provides critical safety and reliability in high-voltage environments. The NVG800A75L4DSC-Z008 leverages advanced IGBT technology for low switching losses and high efficiency in power switching applications.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | Module |
| Mounting Type | Chassis Mount |
| Type | IGBT |
| Configuration | Half Bridge |
| Voltage - Isolation | 4200Vrms |
| Current | 800 A |
| Voltage | 750 V |
