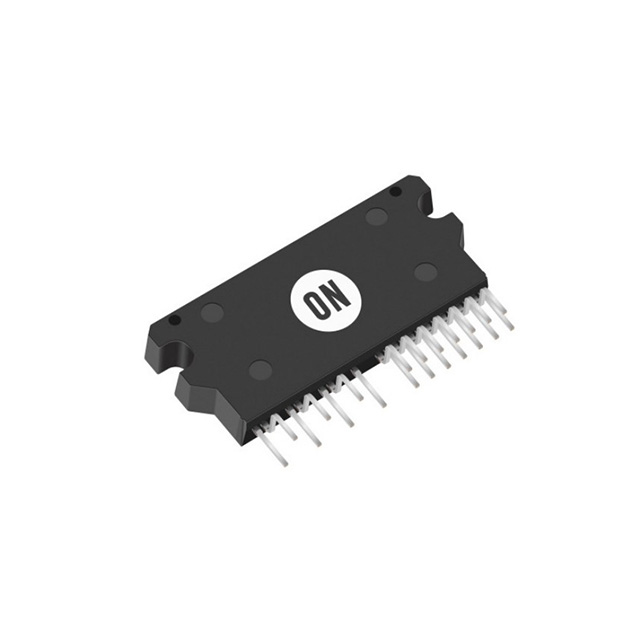

NFAP1060L3TT
INTELLIGENT POWER MODULE 600V 10Manufacturer: onsemi
Categories: Power Driver Modules
Quality Control: Learn More
The onsemi NFAP1060L3TT is a high-performance IGBT Power Driver Module designed for 3-phase inverter applications. This component features a robust 600V blocking voltage and a continuous current rating of 10A, making it suitable for demanding power conversion tasks. The module's integrated design simplifies system architecture, offering a compact solution for power management. With 2000Vrms isolation voltage, it provides enhanced safety and reliability in high-voltage environments. The 29-PowerSSIP Module package with 21 leads and formed leads facilitates efficient through-hole mounting. This intelligent power module is utilized in industries such as industrial automation, renewable energy systems, and electric vehicle powertrains where efficient and reliable power switching is critical.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 23 week(s)Product Status: Not For New DesignsPackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 29-PowerSSIP Module, 21 Leads, Formed Leads |
| Mounting Type | Through Hole |
| Type | IGBT |
| Configuration | 3 Phase Inverter |
| Voltage - Isolation | 2000Vrms |
| Current | 10 A |
| Voltage | 600 V |
