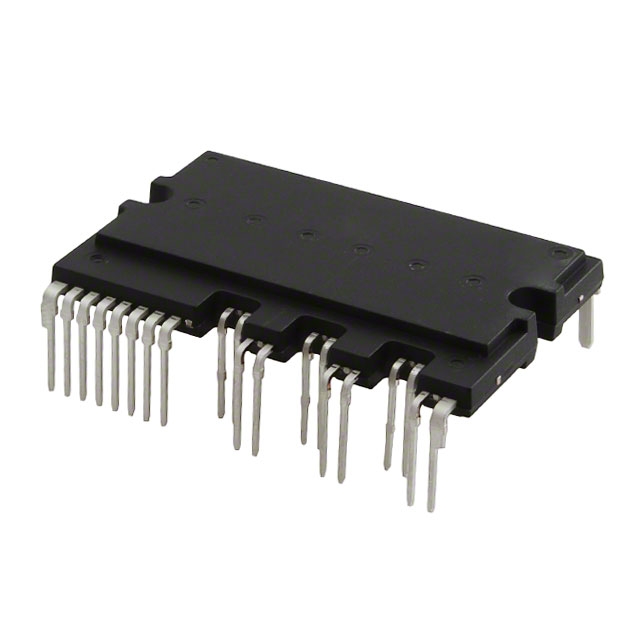

FSBF15CH60BT
MODULE SPM 600V 15A 27PWRDIPManufacturer: onsemi
Categories: Power Driver Modules
Quality Control: Learn More
The onsemi FSBF15CH60BT is a 3-phase Motion SPM® 3 series power driver module. This robust component integrates an IGBT inverter and a high-voltage driver, simplifying motor control system design. It features a 600V blocking voltage rating and a continuous collector current capability of 15A. The module includes built-in protection functions, such as overcurrent and thermal shutdown, enhancing system reliability. With an isolation voltage of 2500Vrms, it is suitable for high-voltage applications. The 27-PowerDIP Module (1.205", 30.60mm) package with through-hole mounting facilitates integration into power electronic assemblies. This component is commonly utilized in industrial automation, home appliances, and electric vehicle powertrains.
Additional Information
Series: Motion SPM® 3RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 27-PowerDIP Module (1.205"", 30.60mm) |
| Mounting Type | Through Hole |
| Type | IGBT |
| Configuration | 3 Phase |
| Voltage - Isolation | 2500Vrms |
| Current | 15 A |
| Voltage | 600 V |
