FSBB30CH60D
MODULE SPM 600V 30A SPMPAManufacturer: onsemi
Categories: Power Driver Modules
Quality Control: Learn More
The onsemi FSBB30CH60D is a 3-phase inverter intelligent power module from the Motion SPM® 3 series. This 600V, 30A device integrates a 3-phase inverter with a high-voltage driver, simplifying motor control designs. It features an IGBT-based inverter stage and a robust gate driver for efficient power switching. The FSBB30CH60D offers 2500Vrms isolation voltage and is packaged in a 27-PowerDIP Module (1.205", 30.60mm) for through-hole mounting. This module is commonly utilized in applications such as industrial motor drives, variable speed drives, and general-purpose inverters where high efficiency and compact design are critical.
Additional Information
Series: Motion SPM® 3RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 27-PowerDIP Module (1.205"", 30.60mm) |
| Mounting Type | Through Hole |
| Type | IGBT |
| Configuration | 3 Phase Inverter |
| Voltage - Isolation | 2500Vrms |
| Current | 30 A |
| Voltage | 600 V |
Request a Quote
Clients Also Buy

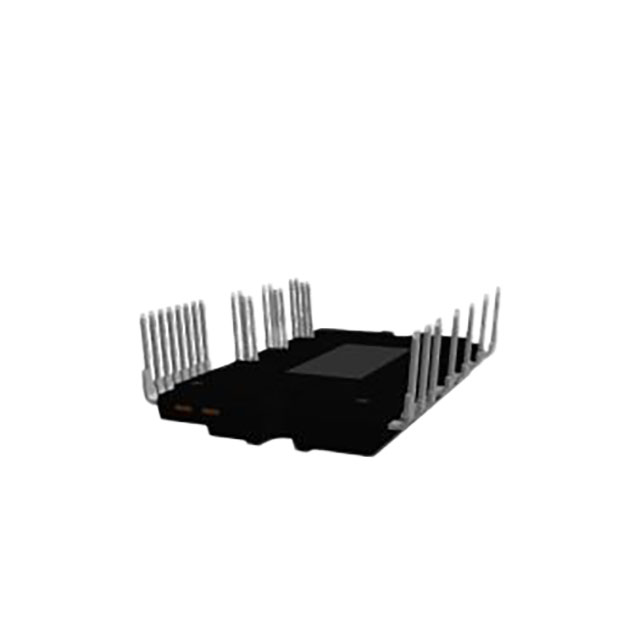

NFP36060L42T
