FSBB30CH60
SMART POWER MODULE 30A SPM27-EAManufacturer: onsemi
Categories: Power Driver Modules
Quality Control: Learn More

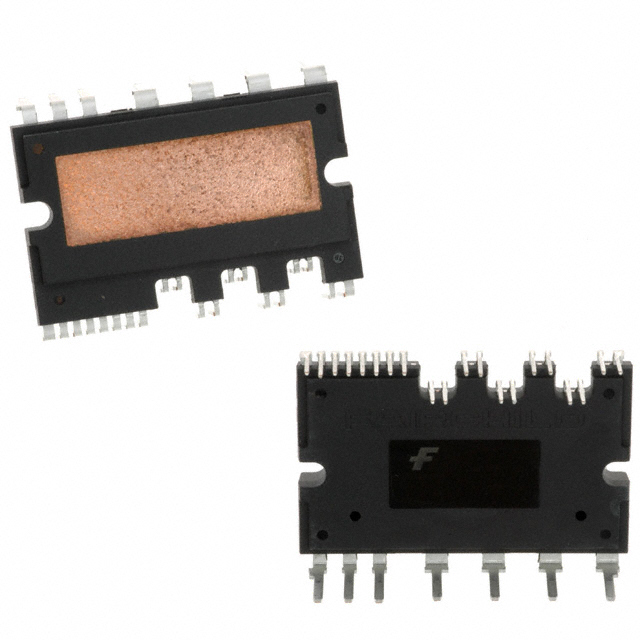

The onsemi FSBB30CH60 is a 600V, 30A Motion SPM® 3 series Smart Power Module. This IGBT-based, 3-phase power module is housed in a 27-PowerDIP Module (1.205", 30.60mm) package with through-hole mounting. Featuring 2500Vrms isolation voltage, it integrates an inverter stage comprising six high-voltage, high-performance IGBTs and three half-bridge IPMs. The module also includes a sophisticated gate driver IC, offering protection functions such as undervoltage lockout, short-circuit protection, and over-temperature detection. This component is commonly utilized in motor drive applications across industrial automation, home appliances, and power supply sectors.
Additional Information
Series: Motion SPM® 3RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 27-PowerDIP Module (1.205"", 30.60mm) |
| Mounting Type | Through Hole |
| Type | IGBT |
| Configuration | 3 Phase |
| Voltage - Isolation | 2500Vrms |
| Current | 30 A |
| Voltage | 600 V |
