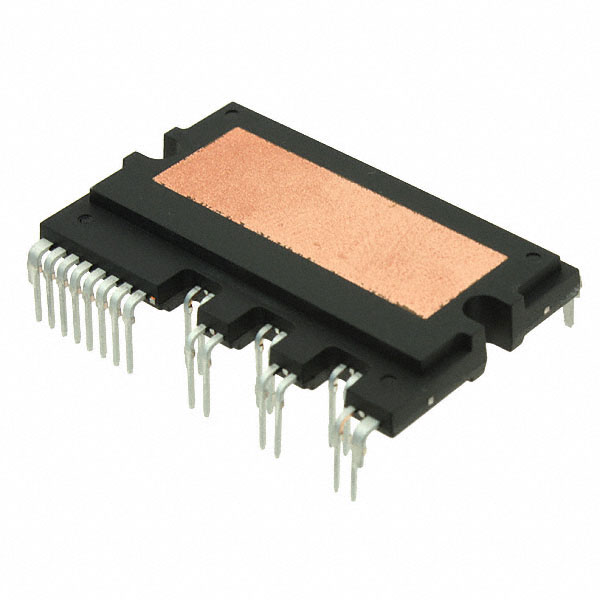

FSBB20CH60CL
SMART POWER MODULE 20A SPM27-CBManufacturer: onsemi
Categories: Power Driver Modules
Quality Control: Learn More
The onsemi Motion SPM® 3 series FSBB20CH60CL is a fully integrated 3-phase power module designed for high-performance motor control applications. This IGBT-based device features a 600V blocking voltage and a continuous current rating of 20A. The FSBB20CH60CL incorporates six IGBTs with a common emitter configuration, along with the necessary gate driver circuitry, providing a compact and efficient solution for inverter stages. Its 2500Vrms isolation voltage ensures robust operation in demanding environments. The 27-PowerDIP Module (1.205", 30.60mm) package facilitates efficient heat dissipation and simplifies board layout. This component is well-suited for use in industrial automation, HVAC systems, and electric vehicle powertrains. The FSBB20CH60CL is supplied in Tube packaging.
Additional Information
Series: Motion SPM® 3RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 27-PowerDIP Module (1.205"", 30.60mm) |
| Mounting Type | Through Hole |
| Type | IGBT |
| Configuration | 3 Phase |
| Voltage - Isolation | 2500Vrms |
| Current | 20 A |
| Voltage | 600 V |
