FSB50650B
MODULE IPM 500V SPM5Manufacturer: onsemi
Categories: Power Driver Modules
Quality Control: Learn More
onsemi's Motion SPM® 5 series FSB50650B is a 3-phase inverter power module designed for demanding applications. This MOSFET-based module features a 500V breakdown voltage and a 4A continuous current capability, making it suitable for motor control systems in appliances, industrial automation, and electric vehicles. The FSB50650B integrates a gate driver and protection features, simplifying system design and reducing component count. Its 23-PowerDIP Module (0.551", 14.00mm) package with through-hole mounting ensures robust integration into high-power designs. The module offers 1500Vrms isolation voltage for enhanced safety and reliability.
Additional Information
Series: Motion SPM® 5RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 23-PowerDIP Module (0.551"", 14.00mm) |
| Mounting Type | Through Hole |
| Type | MOSFET |
| Configuration | 3 Phase Inverter |
| Voltage - Isolation | 1500Vrms |
| Current | 4 A |
| Voltage | 500 V |
Request a Quote
Clients Also Buy
FSB50550AS
MODULE SPM 500V 2A SPM5Q

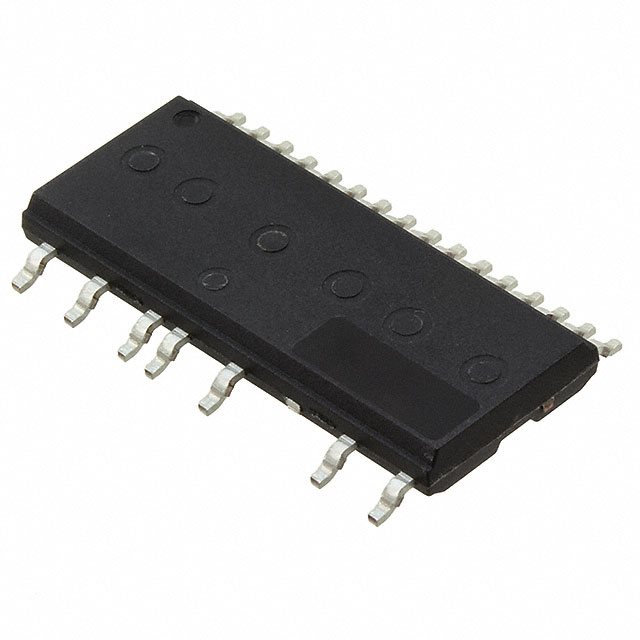

FSB50450AS
