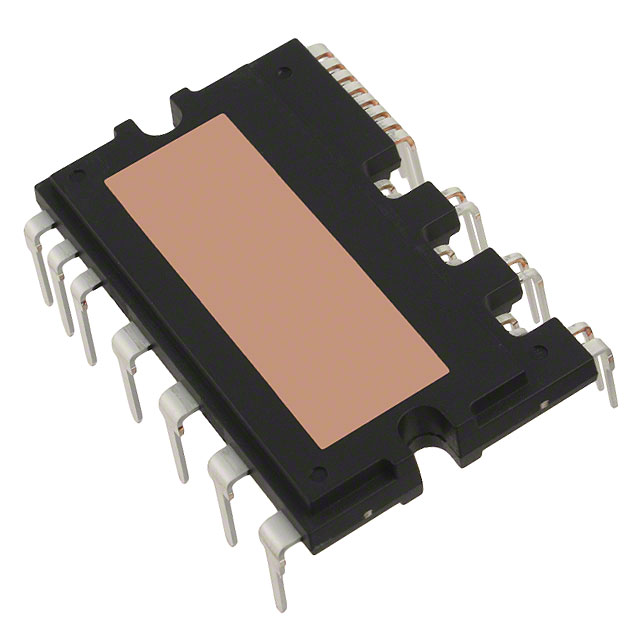

FPAB20BH60B-F166
MODULE SPM 600V 20A SPMICManufacturer: onsemi
Categories: Power Driver Modules
Quality Control: Learn More
onsemi's FPAB20BH60B-F166 is a 1-phase Power Driver Module from the PFC SPM® 3 series. This IGBT-based module operates at 600V and is rated for 20A continuous current. It features a 2500Vrms isolation voltage and is housed in a 27-PowerDIP Module package, measuring 1.205" (30.60mm). Designed for through-hole mounting, this component is a reliable solution for power factor correction and motor drive applications across various industrial sectors, including industrial automation and renewable energy systems. The module's integrated gate driver and protection features simplify system design and enhance reliability.
Additional Information
Series: PFC SPM® 3RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 27-PowerDIP Module (1.205"", 30.60mm) |
| Mounting Type | Through Hole |
| Type | IGBT |
| Configuration | 1 Phase |
| Voltage - Isolation | 2500Vrms |
| Current | 20 A |
| Voltage | 600 V |
Request a Quote
Clients Also Buy
FPAB30BH60
AC MOTOR CONTROLLER, 30A, HYBRID

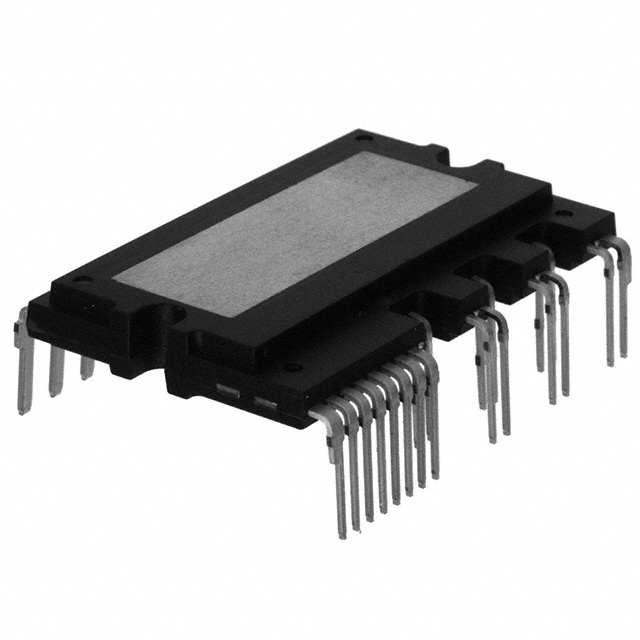

FPDB40PH60B
MODULE SPM 600V 40A SPMGC

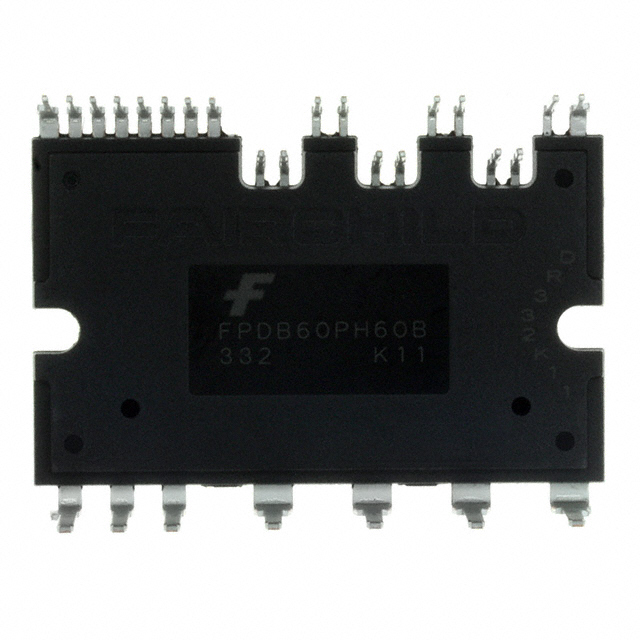

FPDB60PH60B
