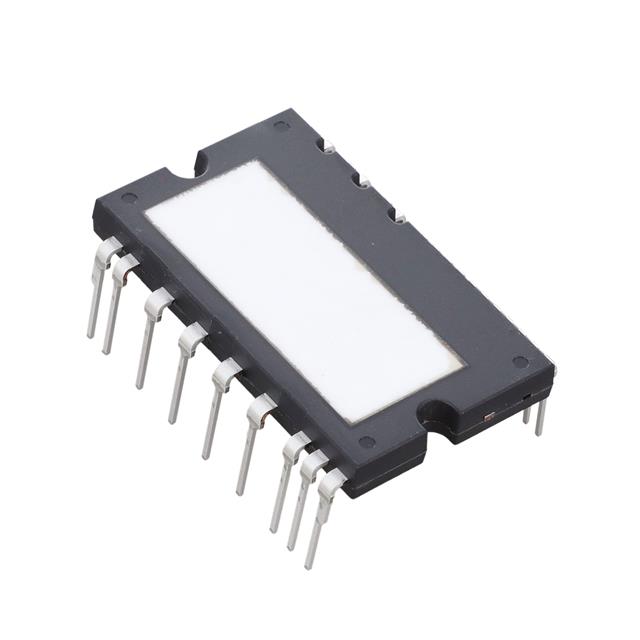

FND42060F2
SPM45H INV 600V 25A LLManufacturer: onsemi
Categories: Power Driver Modules
Quality Control: Learn More
The onsemi Motion SPM® 45 series FND42060F2 is a 3-phase IGBT power module designed for demanding motor control applications. This through-hole mounted component features a 600V breakdown voltage and a continuous collector current rating of 20A. It integrates a high-performance IGBT inverter with freewheeling diodes, a gate driver, and protection functions, all within a compact 26-PowerDIP Module (1.024", 26.00mm) package. The module offers 4000Vrms isolation voltage, ensuring robust performance and reliability. Commonly found in industrial automation, servo drives, and variable speed drives, the FND42060F2 facilitates efficient power conversion and motor management.
Additional Information
Series: Motion SPM® 45RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 26-PowerDIP Module (1.024"", 26.00mm) |
| Mounting Type | Through Hole |
| Type | IGBT |
| Configuration | 3 Phase |
| Voltage - Isolation | 4000Vrms |
| Current | 20 A |
| Voltage | 600 V |
