NCP45560IMNTWG-L
IC PWR SWITCH N-CHAN 1:1 12DFNManufacturer: onsemi
Categories: Power Distribution Switches, Load Drivers
Quality Control: Learn More

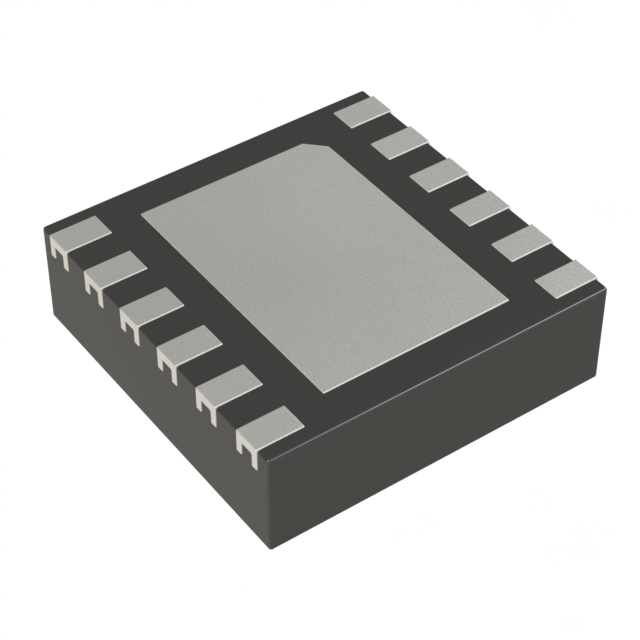

Power Switch/Driver 1:1 N-Channel 17A 12-DFN (3x3)
Additional Information
Series: ecoSWITCH™RoHS Status: ROHS3 CompliantManufacturer Lead Time: 45 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Power Good, Slew Rate Controlled |
| Packaging | Tape & Reel (TR) |
| Package / Case | 12-VFDFN Exposed Pad |
| Output Type | N-Channel |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Interface | ON/OFF |
| Switch Type | General Purpose |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Output Configuration | High Side |
| Rds On (Typ) | 3.2mOhm |
| Input Type | Non-Inverting |
| Voltage - Load | 0.5V ~ 13.5V |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 5.5V |
| Current - Output (Max) | 17A |
| Ratio - Input:Output | 1:1 |
| Supplier Device Package | 12-DFN (3x3) |
| Fault Protection | Over Temperature, UVLO |
| Grade | - |
| Qualification | - |
Request a Quote
