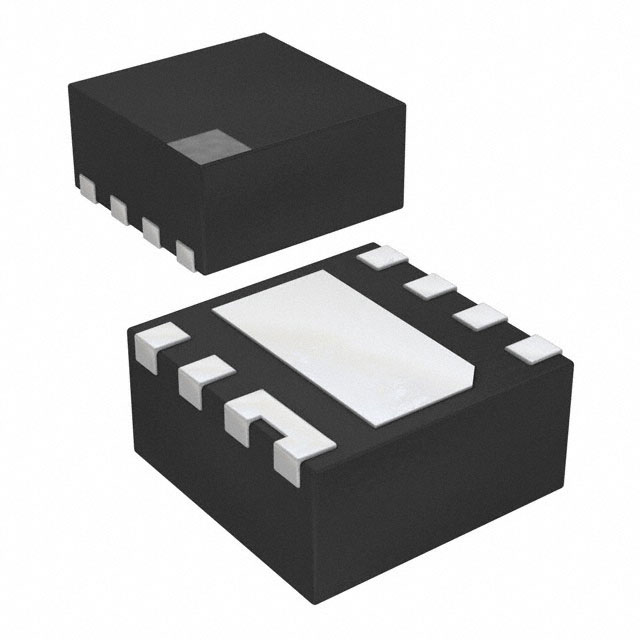

NCP45520IMNTWG-L
IC PWR SWITCH N-CHAN 1:1 8DFNManufacturer: onsemi
Categories: Power Distribution Switches, Load Drivers
Quality Control: Learn More
The onsemi ecoSWITCH™ NCP45520IMNTWG-L is a high-side N-Channel power switch designed for demanding applications. This component offers a 1:1 input-to-output ratio and a maximum output current of 10.5A, with a typical Rds On of 12.8mOhm. It features robust fault protection including over-temperature and undervoltage lockout (UVLO), and is equipped with slew rate control for optimized performance. The NCP45520IMNTWG-L operates across a supply voltage range of 3V to 5.5V and a load voltage range of 0.5V to 13.5V. Its interface is controlled via an ON/OFF pin.
This device is housed in an 8-DFN (2x2) package suitable for surface mounting and is supplied in Tape & Reel packaging. The NCP45520IMNTWG-L finds application in various industrial and consumer electronics segments requiring efficient power management and protection for loads. It is specified for operation within an ambient temperature range of -40°C to 85°C.
Additional Information
Series: ecoSWITCH™RoHS Status: ROHS3 CompliantManufacturer Lead Time: 37 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Slew Rate Controlled |
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-VFDFN Exposed Pad |
| Output Type | N-Channel |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Interface | ON/OFF |
| Switch Type | General Purpose |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Output Configuration | High Side |
| Rds On (Typ) | 12.8mOhm |
| Input Type | Non-Inverting |
| Voltage - Load | 0.5V ~ 13.5V |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 5.5V |
| Current - Output (Max) | 10.5A |
| Ratio - Input:Output | 1:1 |
| Supplier Device Package | 8-DFN (2x2) |
| Fault Protection | Over Temperature, UVLO |
| Grade | - |
| Qualification | - |
