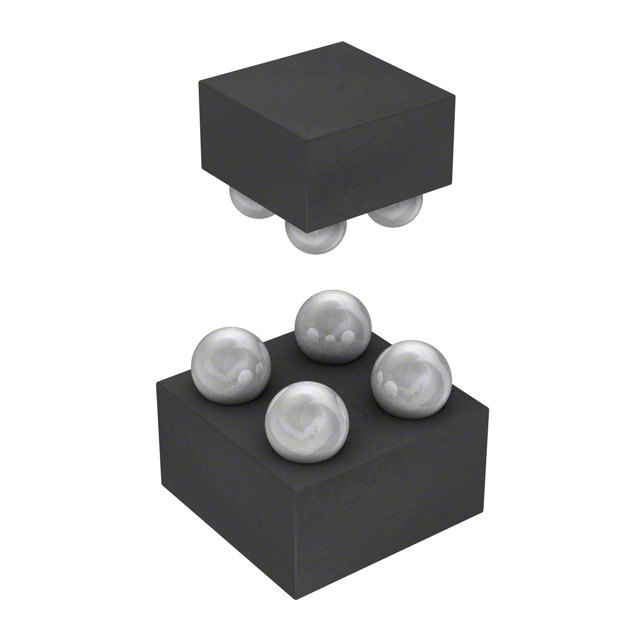

NCP435FCT2G
IC PWR SWITCH P-CHAN 1:1 4WLCSPManufacturer: onsemi
Categories: Power Distribution Switches, Load Drivers
Quality Control: Learn More
The onsemi NCP435FCT2G is a P-channel power switch designed for high-side load control. This device features a 1:1 input-to-output ratio and a low on-resistance of 65mOhm (typ.). It supports load voltages from 1V to 3.6V and can deliver up to 2A of output current. Key functionalities include built-in load discharge and slew rate control, enhancing system stability. The NCP435FCT2G utilizes an ON/OFF interface for simple control and is housed in a compact 4-WLCSP (0.96x0.96) package, suitable for surface mounting. This component finds application in portable electronics and power management systems where efficient and controlled power delivery is critical. It operates within a temperature range of -40°C to 85°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Load Discharge, Slew Rate Controlled |
| Packaging | Tape & Reel (TR) |
| Package / Case | 4-UFBGA, WLCSP |
| Output Type | P-Channel |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Interface | ON/OFF |
| Switch Type | General Purpose |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Output Configuration | High Side |
| Rds On (Typ) | 65mOhm |
| Input Type | Non-Inverting |
| Voltage - Load | 1V ~ 3.6V |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | 2A |
| Ratio - Input:Output | 1:1 |
| Supplier Device Package | 4-WLCSP (0.96x0.96) |
| Fault Protection | - |
