NCP370MUAITXG
IC PWR OVP POS/NEG N-CH 12LLGAManufacturer: onsemi
Categories: Power Distribution Switches, Load Drivers
Quality Control: Learn More
The onsemi NCP370MUAITXG is a versatile N-Channel Power Switch designed for general-purpose applications. This component offers robust fault protection, including fixed current limiting, over-temperature shutdown, over-voltage protection, and undervoltage lockout (UVLO). It features a 1:1 input-to-output ratio and a maximum output current of 1.3A. The output configuration is high-side, and the output type is N-Channel.
Key specifications include a typical on-resistance (Rds On) of 130mOhm, a load voltage range of -28V to 28V, and it operates within an ambient temperature range of -40°C to 85°C. The device is packaged in a 12-LLGA (3x3) with an exposed pad, supplied on tape and reel. Features such as slew rate control and a status flag enhance its functionality. This component is suitable for applications in automotive, industrial, and consumer electronics sectors requiring reliable power management and protection.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Slew Rate Controlled, Status Flag |
| Packaging | Tape & Reel (TR) |

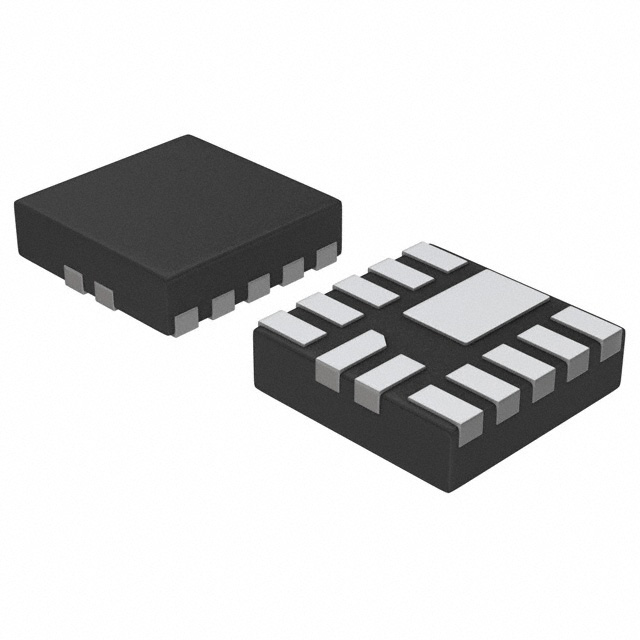

| Package / Case | 12-UFLGA Exposed Pad |
| Output Type | N-Channel |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Interface | ON/OFF |
| Switch Type | General Purpose |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Output Configuration | High Side |
| Rds On (Typ) | 130mOhm |
| Input Type | Non-Inverting |
| Voltage - Load | -28V ~ 28V |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | 1.3A |
| Ratio - Input:Output | 1:1 |
| Supplier Device Package | 12-LLGA (3x3) |
| Fault Protection | Current Limiting (Fixed), Over Temperature, Over Voltage, UVLO |
