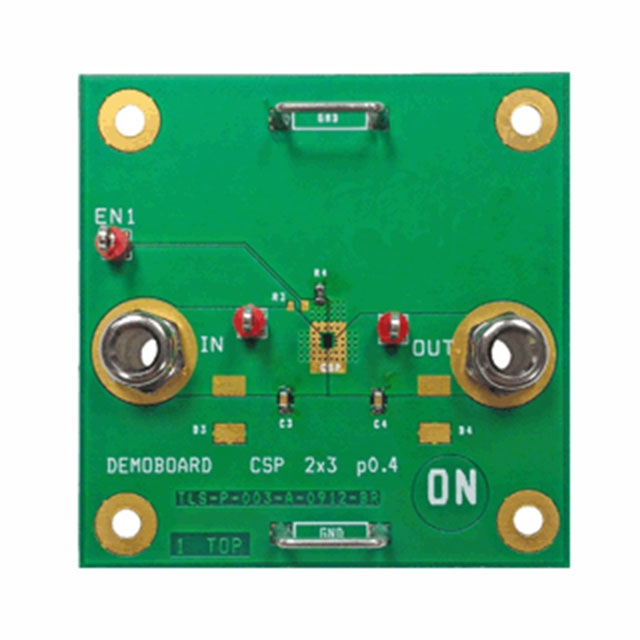

NCP338FCCT2G
IC PWR SWITCH P-CHAN 1:1 6WLCSPManufacturer: onsemi
Categories: Power Distribution Switches, Load Drivers
Quality Control: Learn More
onsemi's NCP338FCCT2G is a P-channel power switch designed for high-side load control. This general-purpose switch, packaged in a compact 6-WLCSP (.8x1.2) configuration, offers a 1:1 input-to-output ratio with a maximum output current of 2A. Key features include integrated load discharge and slew rate control, facilitating controlled power sequencing. The device operates within a load voltage range of 1V to 3.6V and boasts a typical on-resistance (Rds On) of 16mOhm. It includes an ON/OFF interface for straightforward control. This component is suitable for applications requiring precise power management, such as in portable electronics and consumer devices. The NCP338FCCT2G is supplied on tape and reel.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Features | Load Discharge, Slew Rate Controlled |
| Packaging | Tape & Reel (TR) |
| Package / Case | 6-UFBGA, WLCSP |
| Output Type | P-Channel |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Interface | ON/OFF |
| Switch Type | General Purpose |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Output Configuration | High Side |
| Rds On (Typ) | 16mOhm |
| Input Type | Non-Inverting |
| Voltage - Load | 1V ~ 3.6V |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | 2A |
| Ratio - Input:Output | 1:1 |
| Supplier Device Package | 6-WLCSP (.8x1.2) |
| Fault Protection | - |
