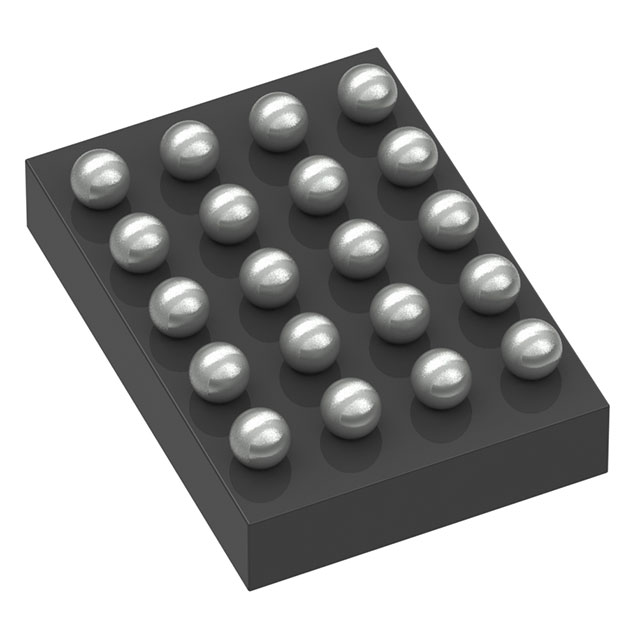

FPF2283CUCX
IC PWR DRVR N-CHAN 1:1 20WLCSPManufacturer: onsemi
Categories: Power Distribution Switches, Load Drivers
Quality Control: Learn More
The onsemi FPF2283CUCX is a robust power switch and driver designed for demanding applications. This N-Channel device offers a 1:1 input-to-output ratio and supports an output current of up to 7A. Key features include integrated fault protection for over-temperature, over-voltage, short-circuit, and under-voltage lockout (UVLO) conditions, along with an auto-restart capability. The device operates from a 2.8V to 23V load voltage range and is housed in a compact 20-WLCSP (2.2x1.8) package suitable for surface mounting. Its low on-resistance of 7.5mOhm (typical) minimizes power dissipation. Interface options include I2C and logic control. This component is widely utilized in industrial and consumer electronics, particularly in power distribution and load management systems. The FPF2283CUCX is supplied in Tape & Reel (TR) packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 26 week(s)Product Status: Last Time BuyPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Auto Restart |
| Packaging | Tape & Reel (TR) |
| Package / Case | 20-UFBGA, WLCSP |
| Output Type | N-Channel |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Interface | I2C, Logic |
| Switch Type | General Purpose |
| Operating Temperature | 150°C (TJ) |
| Output Configuration | High Side |
| Rds On (Typ) | 7.5mOhm |
| Input Type | Non-Inverting |
| Voltage - Load | 2.8V ~ 23V |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | 7A |
| Ratio - Input:Output | 1:1 |
| Supplier Device Package | 20-WLCSP (2.2x1.8) |
| Fault Protection | Over Temperature, Over Voltage, Short Circuit, UVLO |
