FPF2215
IC PWR SWITCH P-CH 1:1 6MICROFETManufacturer: onsemi
Categories: Power Distribution Switches, Load Drivers
Quality Control: Learn More

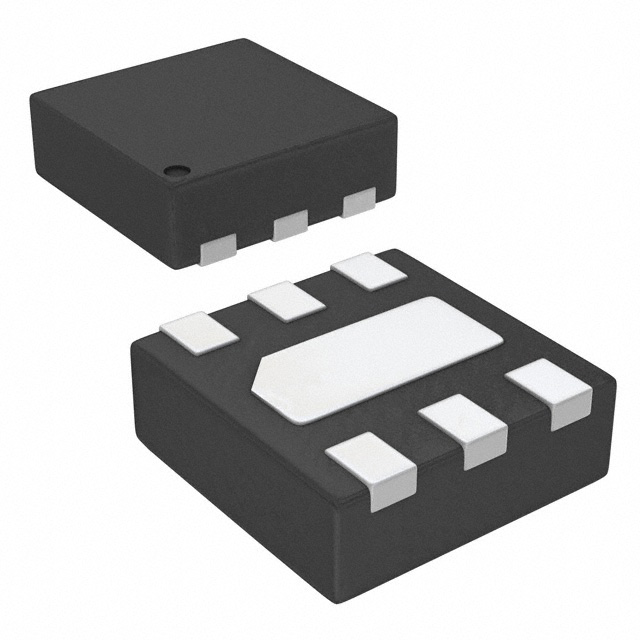

Power Switch/Driver 1:1 P-Channel 250mA 6-MicroFET (2x2)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Features | Load Discharge, Status Flag |
| Packaging | Tape & Reel (TR) |
| Package / Case | 6-WDFN Exposed Pad |
| Output Type | P-Channel |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Interface | ON/OFF |
| Switch Type | General Purpose |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Output Configuration | High Side |
| Rds On (Typ) | 250mOhm |
| Input Type | Non-Inverting |
| Voltage - Load | 1.8V ~ 5.5V |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | 250mA |
| Ratio - Input:Output | 1:1 |
| Supplier Device Package | 6-MicroFET (2x2) |
| Fault Protection | Current Limiting (Adjustable), Over Temperature, UVLO |
