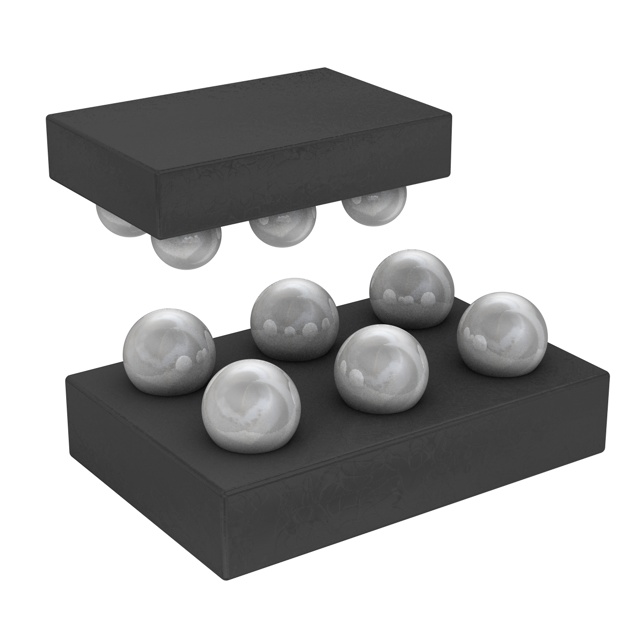

FPF2193
IC PWR SWITCH P-CHAN 1:1 6WLCSPManufacturer: onsemi
Categories: Power Distribution Switches, Load Drivers
Quality Control: Learn More
onsemi FPF2193 is a P-channel load switch designed for efficient power control. This device offers a 1.5A maximum output current with a typical Rds(on) of 55mOhm, ensuring minimal voltage drop and power dissipation. Key fault protection features include adjustable current limiting, over-temperature shutdown, reverse current protection, and undervoltage lockout (UVLO). The FPF2193 incorporates auto-restart functionality and a status flag for enhanced system monitoring. It operates with a load voltage range of 1.8V to 5.5V and is provided in a compact 6-WLCSP (0.96x1.66) package, suitable for surface mounting. This component is commonly utilized in consumer electronics and portable device applications requiring robust power management.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Auto Restart, Status Flag |
| Packaging | Tape & Reel (TR) |
| Package / Case | 6-UFBGA, WLCSP |
| Output Type | P-Channel |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Interface | ON/OFF |
| Switch Type | General Purpose |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Output Configuration | High Side |
| Rds On (Typ) | 55mOhm |
| Input Type | Non-Inverting |
| Voltage - Load | 1.8V ~ 5.5V |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | 1.5A |
| Ratio - Input:Output | 1:1 |
| Supplier Device Package | 6-WLCSP (0.96x1.66) |
| Fault Protection | Current Limiting (Adjustable), Over Temperature, Reverse Current, UVLO |
