QSD723
SENSOR PHOTO 880NM TOP VIEW TO18Manufacturer: onsemi
Categories: Phototransistors
Quality Control: Learn More

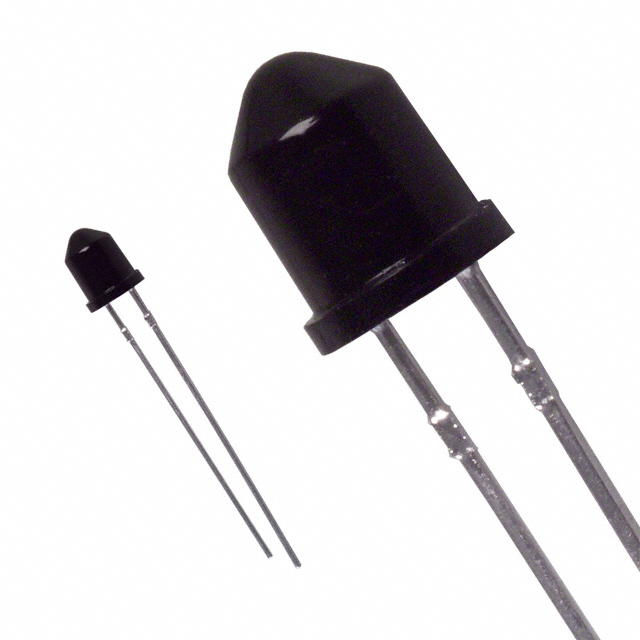

onsemi QSD723 is a phototransistor designed for optical sensing applications. This component features a top-view orientation within a TO-18-2 package, facilitating through-hole mounting. It operates with a collector-emitter breakdown voltage of 30V and a maximum power dissipation of 100mW. The QSD723 exhibits a dark current of 100nA and is optimized for an 880nm wavelength, with a viewing angle of 40°. The operating temperature range for this device is -40°C to 100°C. This phototransistor is commonly utilized in industrial automation, consumer electronics, and automotive lighting control systems.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging:Download Free CAD Model:
Technical Details:
| Packaging | |
| Package / Case | TO-18-2 |
| Wavelength | 880nm |
| Mounting Type | Through Hole |
| Orientation | Top View |
| Operating Temperature | -40°C ~ 100°C |
| Viewing Angle | 40° |
| Current - Dark (Id) (Max) | 100 nA |
| Voltage - Collector Emitter Breakdown (Max) | 30 V |
| Power - Max | 100 mW |
| Packaging |
