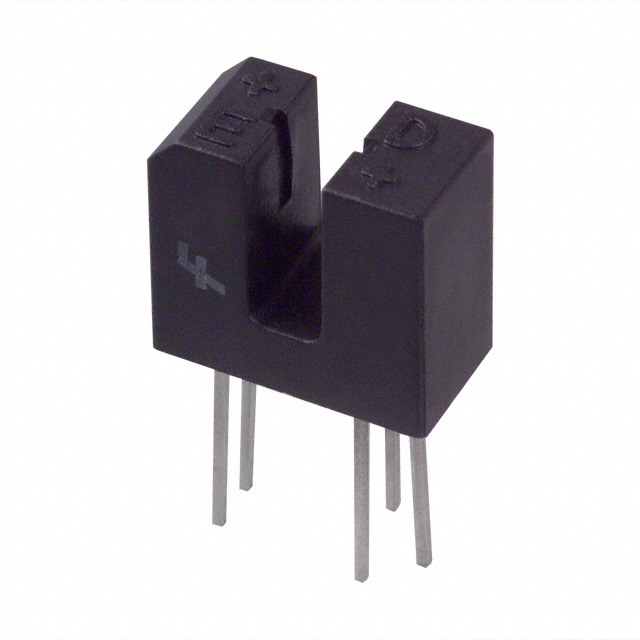

H22LOI
SENSOR OPTICL 3.15MM SLOT PC PINManufacturer: onsemi
Categories: Photointerrupters - Slot Type - Logic Output
Quality Control: Learn More
onsemi OPTOLOGIC® H22LOI is a through-beam optical sensor module with a 0.124" (3.15mm) slot width, featuring PC pins for through-hole mounting. This component provides a logic output with an NPN open collector, inverted configuration. Designed for robust performance, it operates within a 4.5V to 16V supply voltage range, drawing a typical supply current of 5 mA. The H22LOI boasts a rapid 100ns response time, making it suitable for applications requiring precise object detection and position sensing. Its reliable operation extends across an industrial temperature range of -40°C to 85°C. This sensor finds application in various industries, including industrial automation, consumer electronics, and medical equipment where accurate optical sensing is critical.
Additional Information
Series: OPTOLOGIC®RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging:Download Free CAD Model:
Technical Details:
| Packaging | |
| Package / Case | Module, PC Pins, Slot Type |
| Sensing Distance | 0.124"" (3.15mm) |
| Sensing Method | Through-Beam |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C ~ 85°C |
| Output Configuration | NPN - Open Collector, Inverted |
| Voltage - Supply | 4.5V ~ 16V |
| Response Time | 100ns |
| Current - Supply | 5 mA |
| Packaging |
