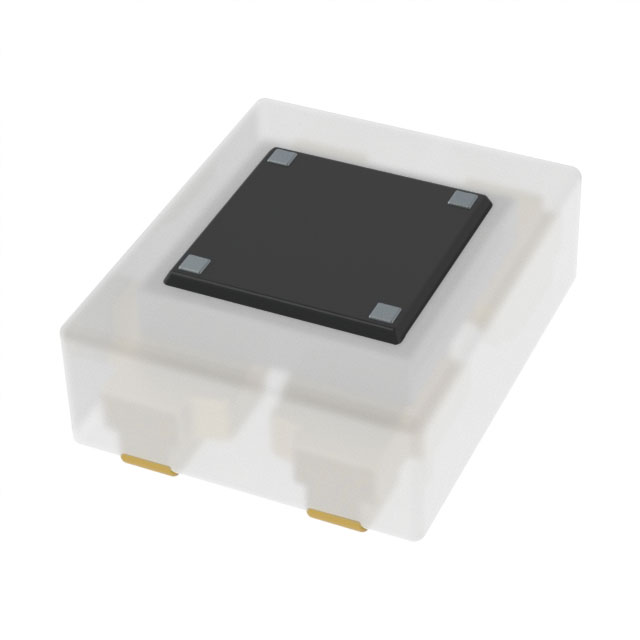

MICRORB-10010-MLP-TR
SENSOR PHOTODIODE 905NM 4WDFNManufacturer: onsemi
Categories: Photodiodes
Quality Control: Learn More
The onsemi RB series MICRORB-10010-MLP-TR is a high-performance photodiode designed for demanding applications. Featuring a 1mm² active area and a 4-WDFN surface mount package, this component offers a fast 1.5ns response time and a spectral range of 300nm to 1050nm. Its responsivity at 905nm is 52 kA/W, with a typical dark current of 520nA. The diode type is Pin, and it supports a maximum reverse voltage of 27V. Operating across a temperature range of -40°C to 85°C, the MICRORB-10010-MLP-TR is suitable for use in automotive, industrial, and medical sensing systems. This component is supplied in Tape & Reel packaging.
Additional Information
Series: RBRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 4-WDFN |
| Wavelength | 905nm |
| Mounting Type | Surface Mount |
| Diode Type | Pin |
| Operating Temperature | -40°C ~ 85°C |
| Response Time | 1.5ns |
| Viewing Angle | - |
| Spectral Range | 300nm ~ 1050nm |
| Color - Enhanced | Infrared (NIR)/Red |
| Responsivity @ nm | 52 kA/W @ 905nm |
| Active Area | 1mm² |
| Current - Dark (Typ) | 520nA |
| Voltage - DC Reverse (Vr) (Max) | 27 V |
