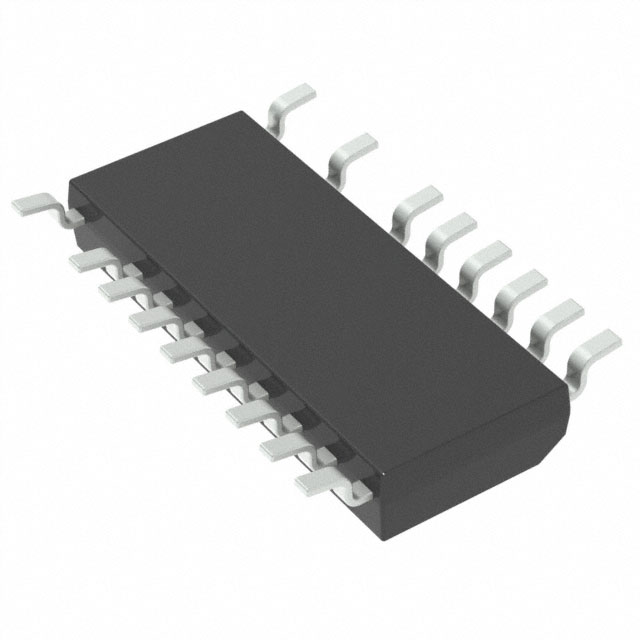

NCP1615CDR2G
IC PFC CTL CCFF/CRM 26KHZ 16SOICManufacturer: onsemi
Categories: PFC (Power Factor Correction)
Quality Control: Learn More
The onsemi NCP1615CDR2G is a Power Factor Correction (PFC) controller IC operating in Current Controlled Frequency Foldback (CCFF) and Critical Conduction (CRM) modes. This device features a 26kHz switching frequency and is housed in a 16-SOIC package. It requires a supply voltage range of 9.5V to 28V and has a startup current of 12mA. The NCP1615CDR2G is designed for surface mount applications and operates across a temperature range of -40°C to 125°C. This component is commonly utilized in power supply designs for consumer electronics, industrial automation, and LED lighting applications. The 16-SOIC package, with a width of 3.90mm, accommodates 15 leads. The product is supplied in a Tape & Reel (TR) configuration.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 16-SOIC (0.154"", 3.90mm Width), 15 Leads |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 125°C |
| Voltage - Supply | 9.5V ~ 28V |
| Frequency - Switching | 26kHz |
| Mode | Current Controlled Frequency Foldback (CCFF), Critical Conduction (CRM) |
| Supplier Device Package | 16-SOIC |
| Current - Startup | 12 mA |
